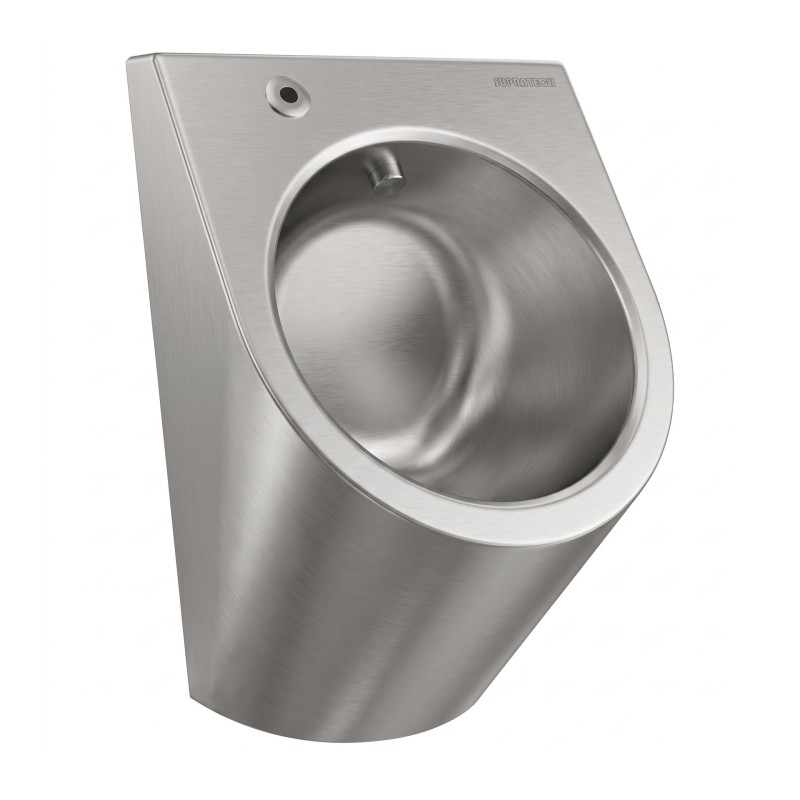

Wall mounted individual urinal infrared detection integrated
with automatic rinse touch free
Stainless steel urinal wall mounted individual URBA infrared detection integrated
ALL INCLUDED = INSTALLATION SIMPLIFIED / WITHOUT APPARENT MECHANISM = VANDAL PROOF
- Automatic flush set off when the user leaves
- Flush length 6 seconds by default (adjustable)
- Mains operated (external transformer 230/9V included- cable 5 m) or by 9V battery
(indicator light low battery, service trap for replacement)
- Solenoid valve M1/2'' with filter, flexible for water flow connexions
- Projection head ½’’.
- Service trap.
- Sensor
- Infrared
- Detection adjustment
- Factory preset
- Sensor range
- 600 mm (adjustable from 300 to 800 mm)
- Power supply
- 9V battery
230/9V transformer - Hygienic rinse anti-legionella
- After 24 H of non-use
- Solenoid valve
- Embedded
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.5 mm
- Finish
- Brushed
- Water inlet
- 1/2"
- Evacuation
- Ø 40 mm
- Pressure
- 1-6 bars
- Fixing
- Wall mounted
- Mounting details
- By screws and wall plugs
- Operation settings
- Adjustable by RES-31 remote control: detection sensitivity, activation delay, delay after user leaves, flush scale, temporary off, interval rinse 24 H.

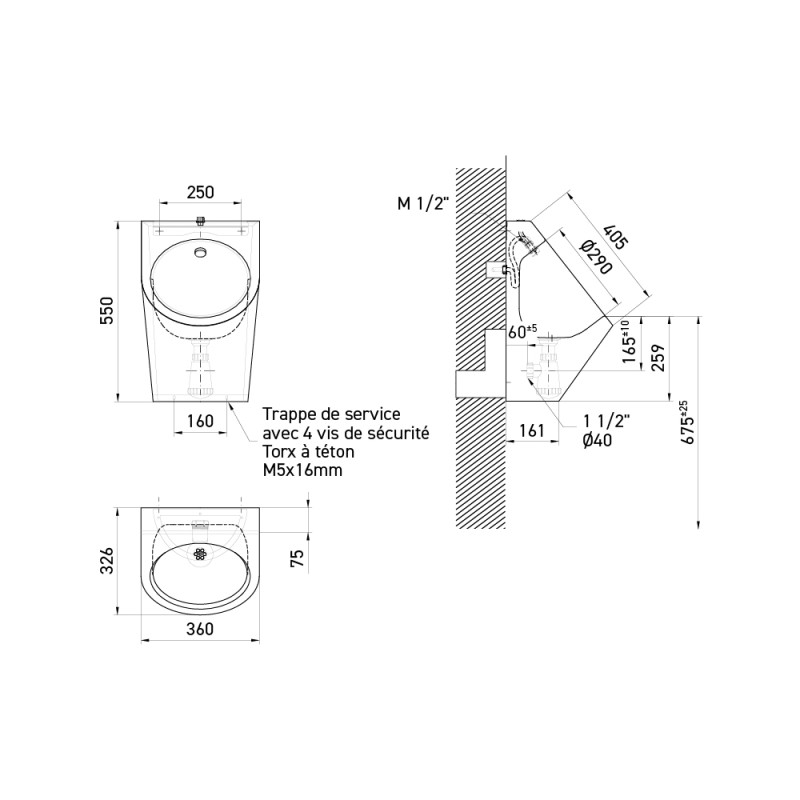

- Dimensions
- W360 x D325 x H550 mm
- Warranty
- 3 years
- Certification
- CE
- Outlet details
- Ø 40 mm (trap included)
- Connection gender
- Male
Stainless steel urinal wall mounted individual URBA infrared detection integrated
ALL INCLUDED = INSTALLATION SIMPLIFIED / WITHOUT APPARENT MECHANISM = VANDAL PROOF
- Automatic flush set off when the user leaves
- Flush length 6 seconds by default (adjustable)
- Mains operated (external transformer 230/9V included- cable 5 m) or by 9V battery
(indicator light low battery, service trap for replacement)
- Solenoid valve M1/2'' with filter, flexible for water flow connexions
- Projection head ½’’.
- Service trap.
- Sensor
- Infrared
- Detection adjustment
- Factory preset
- Sensor range
- 600 mm (adjustable from 300 to 800 mm)
- Power supply
- 9V battery
230/9V transformer - Hygienic rinse anti-legionella
- After 24 H of non-use
- Solenoid valve
- Embedded
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.5 mm
- Finish
- Brushed
- Water inlet
- 1/2"
- Evacuation
- Ø 40 mm
- Pressure
- 1-6 bars
- Fixing
- Wall mounted
- Mounting details
- By screws and wall plugs
- Operation settings
- Adjustable by RES-31 remote control: detection sensitivity, activation delay, delay after user leaves, flush scale, temporary off, interval rinse 24 H.
- Dimensions
- W360 x D325 x H550 mm
- Warranty
- 3 years
- Certification
- CE
- Outlet details
- Ø 40 mm (trap included)
- Connection gender
- Male
