Wall mounted individual urinal infrared detection integrated

with automatic rinse touch free

Ref. : UR-11-ET

€925.00 excl. VAT

Tax excluded

Quantity

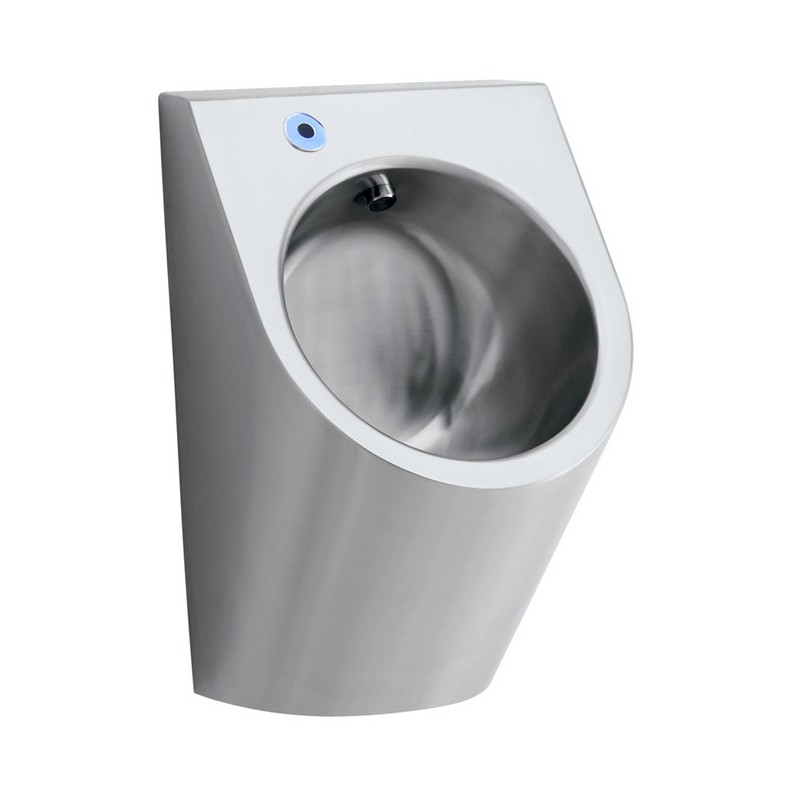

Stainless steel urinal wall mounted individual URBA infrared detection integrated

ALL INCLUDED = INSTALLATION SIMPLIFIED / WITHOUT APPARENT MECHANISM = VANDAL PROOF

- Automatic flush set off when the user leaves

- Flush length 6 seconds by default (adjustable)

- Mains operated (external transformer 230/9V included- cable 5 m) or by 9V battery
(indicator light low battery, service trap for replacement)

- Solenoid valve M1/2'' with filter, flexible for water flow connexions

- Projection head ½’’.

- Service trap.

OPTIONS

Sensor: Infrared with optimized presets
Sensor range: 600 mm (adjustable from 300 to 800 mm)
Electrical supply: 230/9V transformer or 9V alkaline battery
Solenoid valve: Embedded
Material: Bacteriostatic AISI 304 stainless steel
Stainless steel thickness: 1,5 mm
Finish: Brushed
Water inlet: Threaded M1/2''
Evacuation: Ø 40 mm (skimmer included)
Pressure: 1-6 bars
Fixation: Frontal by screws and wall plugs
Hygienic rinse anti-limescale: After 24 H of non-use
Operation settings: Adjustable by remote control RES-31 : Detection sensitivity, activation delay, delay after user leaves, flush scale, temporary off, interval rinse 24 H.
Dimensions: W360 x D325 x H550 mm
Warranty: 3 years. CE.
