Suspended WC brushed stainless steel ULTIMA
Ref: IN-001
€785.00
Tax Excl.

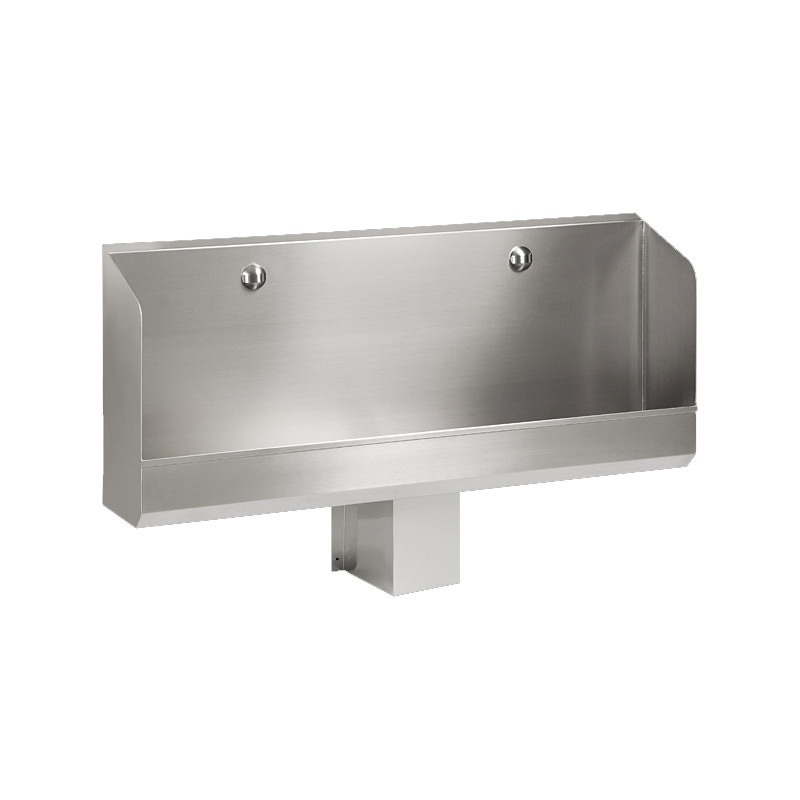

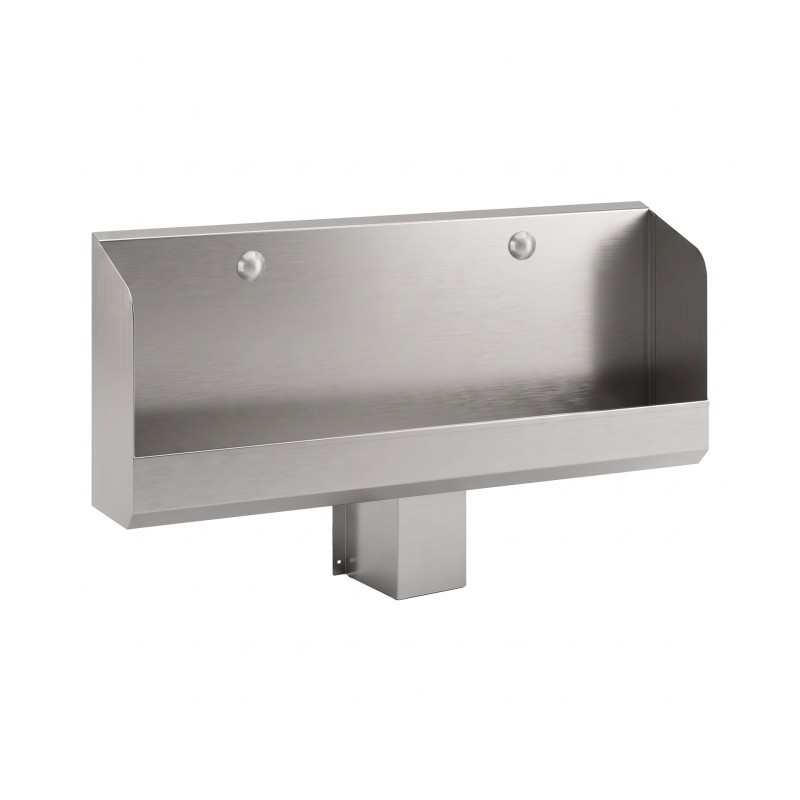

Wall mounted collective urinal automatic flush in stainless steel
ideal for collective facilities, invisible detection and inaccessible to the public !
SPN-2T
€1,790.00
Tax Excl.

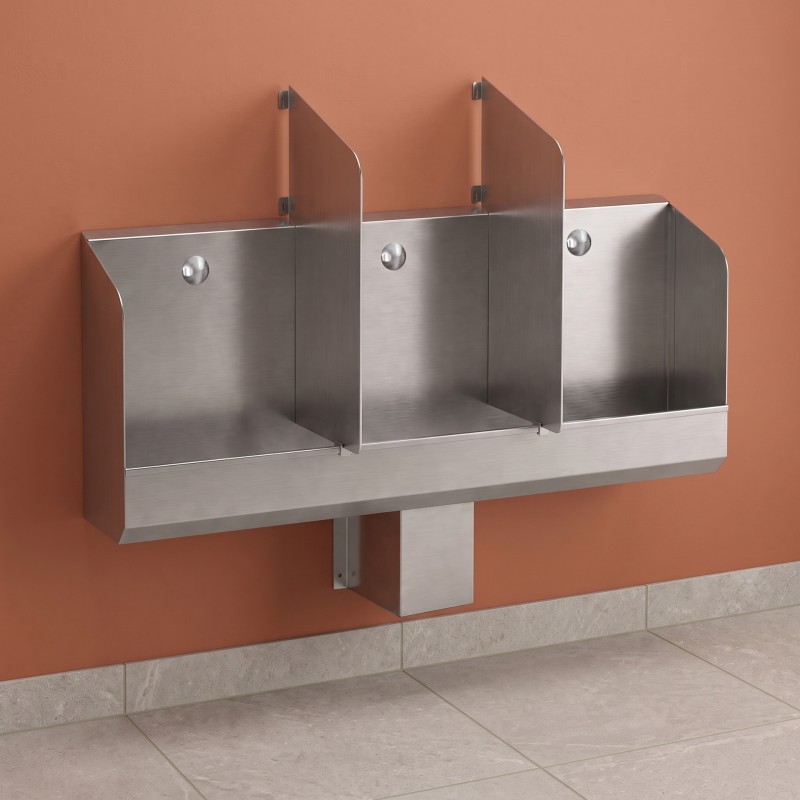

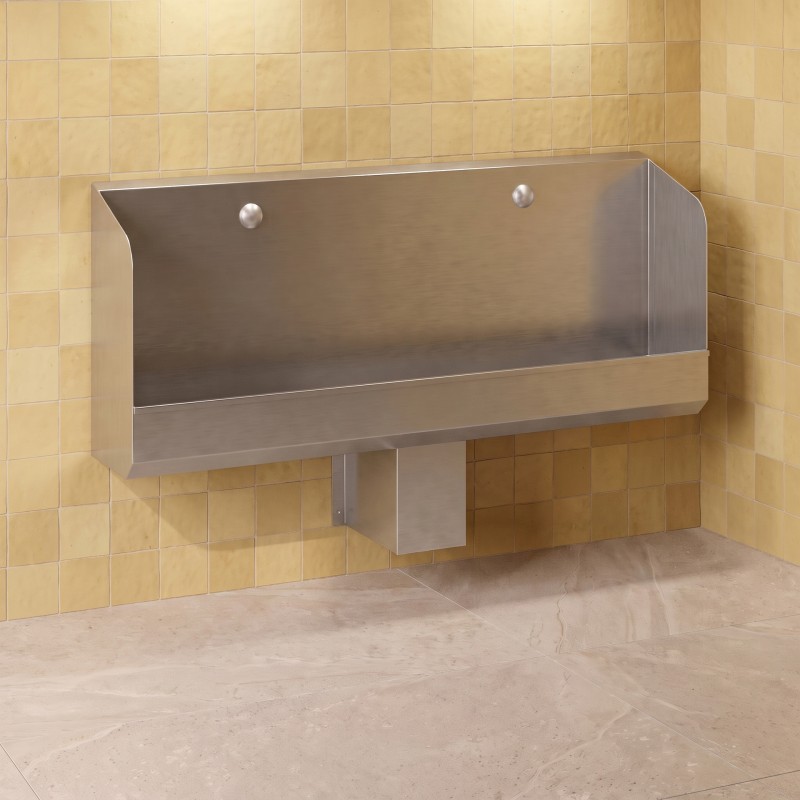

Wall mounted urinal with electronic invisible and thermic flush
The system automatically activates rinse when it detects a temperature change (heat of urine)
|
Invisible activation and inaccessible = aesthetic and hidden from vandalism System without s-trap = maximal reliability Quick and simplified mounting = controlled costs |
- Back splash specially made to integrate plumbing and faucets = reduces installation fees
- Complete rinse of the urinal strictly in case of direct use
- system analyses the change in the urinal when liquid flows on the inside.
- Automatic rinse after 24 H without using (interval adjustable 6/24/48/72 H or without)
- Delivered with:
thermal detector, rinse nozzle, solenoid valve, stopcock with filter, connexions, s-trap, concealed siphon stainless steel, fixations
- Sensor
- Thermal sensor
- Power supply
- 230/24V transformer or 6V battery
- Consumption
- 7 W on 24 V ; 3 W on 6 V
- Hygienic rinse anti-legionella
- After 24 H of non-use (adjustable)
- Material
- Bacteriostatic AISI 304 stainless steel
- Stainless steel thickness
- 1,2 mm
- Finish
- Brushed
- Stopcock
- Bracket with filter
- Water inlet
- Threaded M1/2''
- Evacuation
- Ø 50 mm
- Pressure
- 1 - 8 bars
- Flush time
- 0.,5 to 15,5 sec. adjustable
- Flow rate
- 12 LPM.
- Fixing
- Wall mounted
- Operation settings
- Adjustable by SLD04 remote control: detection sensitivity, flow time, interval rinse, temporary off...

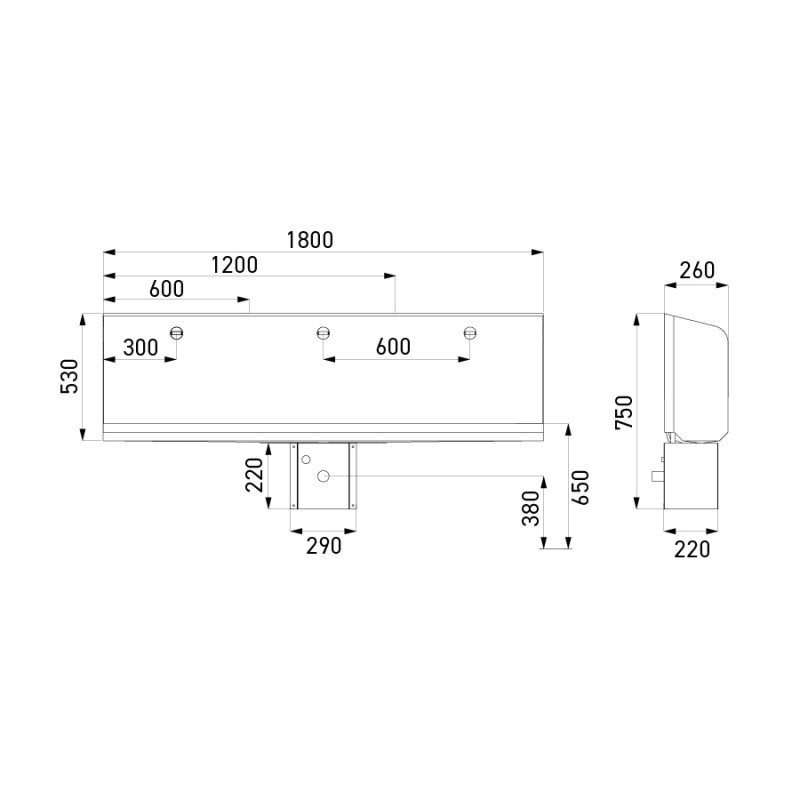

- Dimensions
- W600 x D220 x H520 mm
W1200 x D220 x H520 mm
W1800 x D220 x H520 mm - Warranty
- Electronics 5 years
Wall mounted urinal with electronic invisible and thermic flush
The system automatically activates rinse when it detects a temperature change (heat of urine)
|
Invisible activation and inaccessible = aesthetic and hidden from vandalism System without s-trap = maximal reliability Quick and simplified mounting = controlled costs |
- Back splash specially made to integrate plumbing and faucets = reduces installation fees
- Complete rinse of the urinal strictly in case of direct use
- system analyses the change in the urinal when liquid flows on the inside.
- Automatic rinse after 24 H without using (interval adjustable 6/24/48/72 H or without)
- Delivered with:
thermal detector, rinse nozzle, solenoid valve, stopcock with filter, connexions, s-trap, concealed siphon stainless steel, fixations
- Sensor
- Thermal sensor
- Power supply
- 230/24V transformer or 6V battery
- Consumption
- 7 W on 24 V ; 3 W on 6 V
- Hygienic rinse anti-legionella
- After 24 H of non-use (adjustable)
- Material
- Bacteriostatic AISI 304 stainless steel
- Stainless steel thickness
- 1,2 mm
- Finish
- Brushed
- Stopcock
- Bracket with filter
- Water inlet
- Threaded M1/2''
- Evacuation
- Ø 50 mm
- Pressure
- 1 - 8 bars
- Flush time
- 0.,5 to 15,5 sec. adjustable
- Flow rate
- 12 LPM.
- Fixing
- Wall mounted
- Operation settings
- Adjustable by SLD04 remote control: detection sensitivity, flow time, interval rinse, temporary off...
- Dimensions
- W600 x D220 x H520 mm
W1200 x D220 x H520 mm
W1800 x D220 x H520 mm - Warranty
- Electronics 5 years
