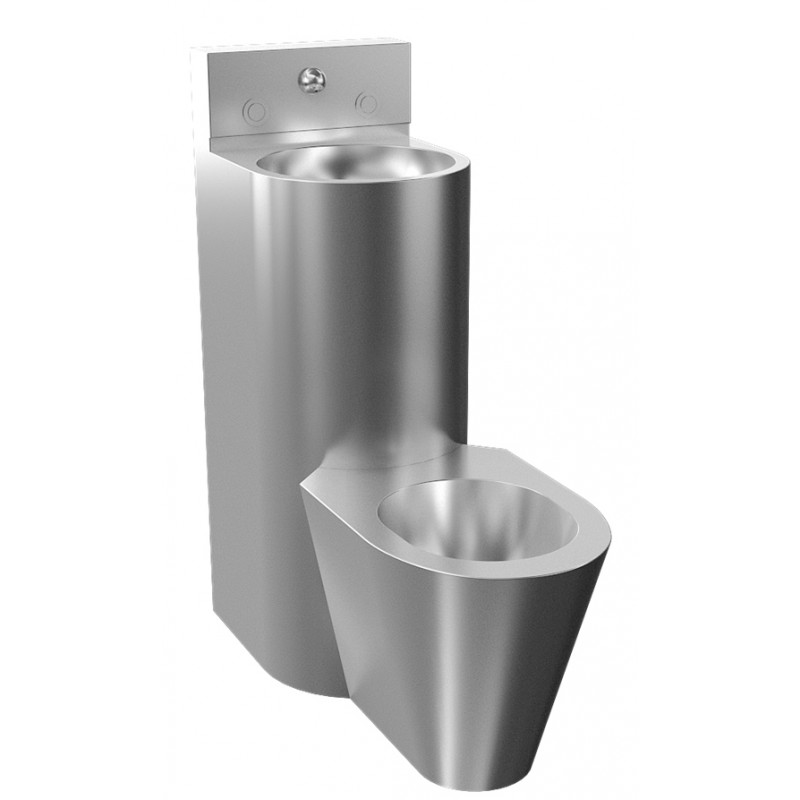

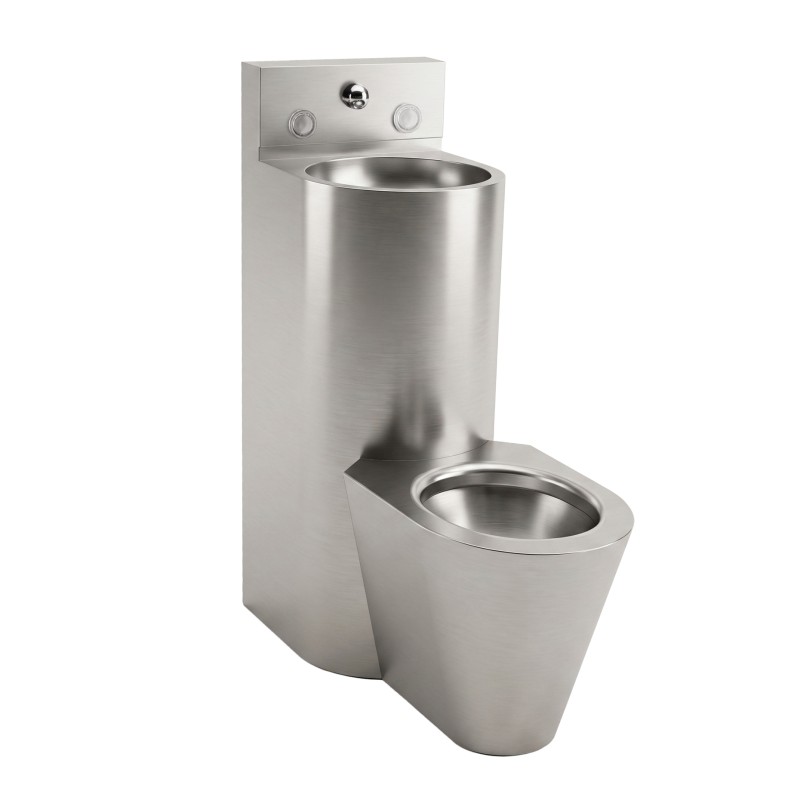

COMBINEO floor-mounted WC and stainless steel sink unit with panel-mounted installation and service duct access
Vandal-proof stainless steel combination unit with sink and WC for disciplinary units and high-risk areas

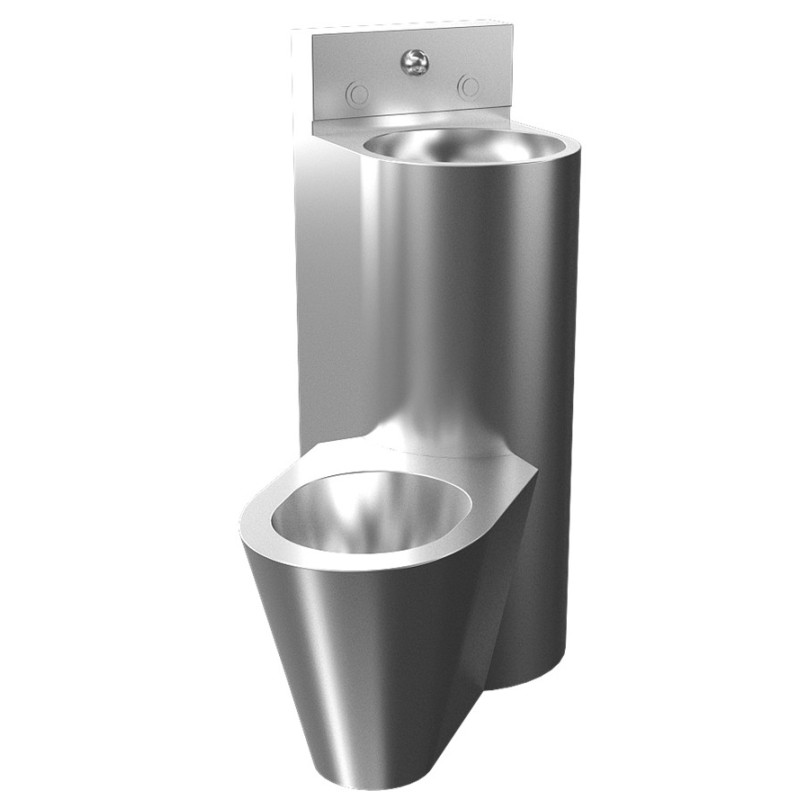

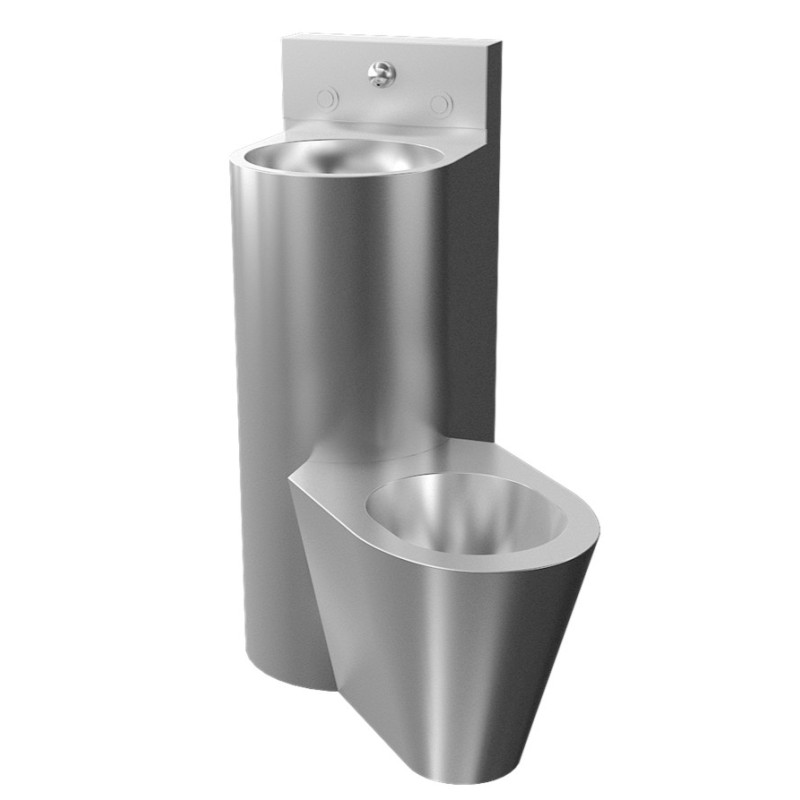

The COMBINEO VANDAL-PROOF WC SINK COMBO offers functionality in a compact footprint, combining durability, safety, and hygiene, specifically designed for use in prisons, psychiatric hospitals, courthouses, police stations, public restrooms...
Panel-mounted version: installation with technical duct access
Includes floor-standing WC bowl (positioned either to the left, right or center), Ø320 mm pressed basin, 2 recessed timed push-button faucets for washdown WC, and anti-blocking cold or pre-mixed water for the sink, with anti-ligature stainless spout.
AISI 304 stainless steel, brushed finish.
The combination unit is reinforced with high density polyurethane foam to prevent noise and denting.
Floor-standing WC with a minimum flush of 4 liters, integrated and welded to the body of the combo unit.
One-piece splashproof pressed bowl with a concealed rim for easy maintenance, preventing product concealment and ensuring improved hygiene.
Backsplash W150 x D85 mm, with shelf use.
2 vandal-proof integrated push-button faucets for washbasin and washdown WC.

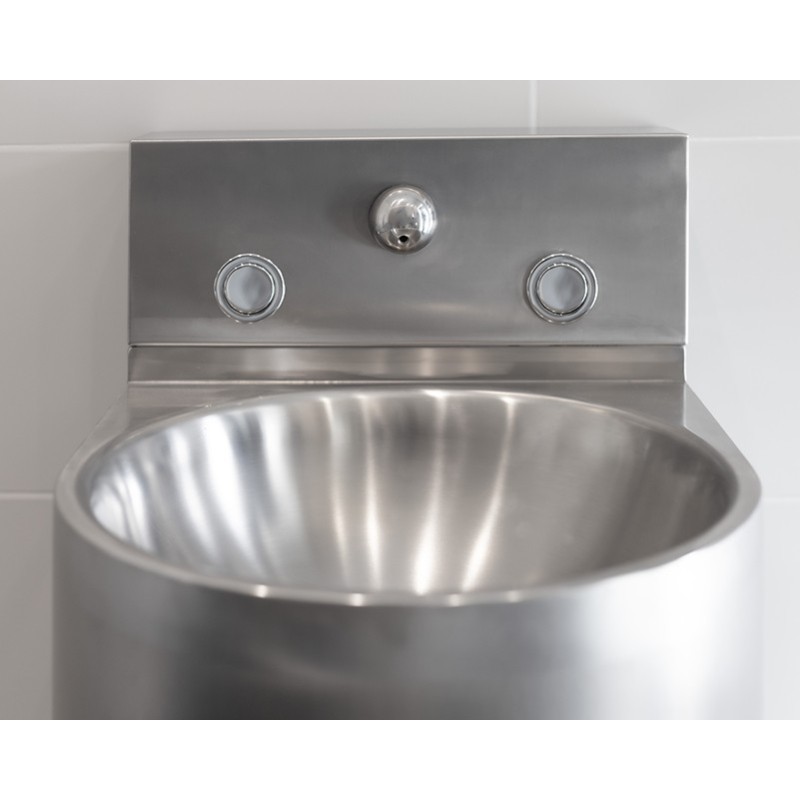

Rounded vandal-proof AISI 304 stainless steel spout with anti-rotation feature and concealed flow regulator.
Installation:
- Washbasin: M1/2’’ threaded faucet.
10-20 seconds flow time with anti-blocking cartridge.
6LPM flow. Pressure 1.5 -5 bars (recommended 3-4 bars). Tamper-proof perforated 1 1/2” drain.
- WC: M3/4" threaded faucet, pre-connected flush pipe to bowl with Ø55 mm inlet, featuring an integrated Venturi system for effective flushing.
7-10 secondes flow time / 4-8L flush.
Ø100 mm S-trap. Rounded junction edge for easy installation.
- Mounting: Panel-mounted with 6 M10 threaded rods, 190 mm in length, along with washers and nuts (other lengths available upon request).
- Integrated grounding.
CE. Compliant with EN 997 and EN 33 (WC) + EN 14688 (washbasin) + EN 816 et EN 1112 (water regulations).
OPTIONS
- Second sink push-button faucet for hot water (Ref. ...-CF)
- With flushing for 6L tank (Ref. ...-R)
- Without backsplash
- Horizontal stainless steel drainage tube for sink
- Without backsplash, without water spout, piezo-sensitive controls, remote operation controls (up to 20 m)...
- Operation
- Temporized push button
- Material
- AISI 304 stainless steel
- Detailed composition
- 2.0 / 1.6 / 1.2 mm
- Stainless steel thickness
- 1.2 mm
1.6 mm
2 mm - Finish
- Brushed
- Water inlet
- 1/2"
3/4" - Evacuation
- Ø 100 mm
- Fixing
- Through-partition mounted
- Mounting details
- By threaded rods

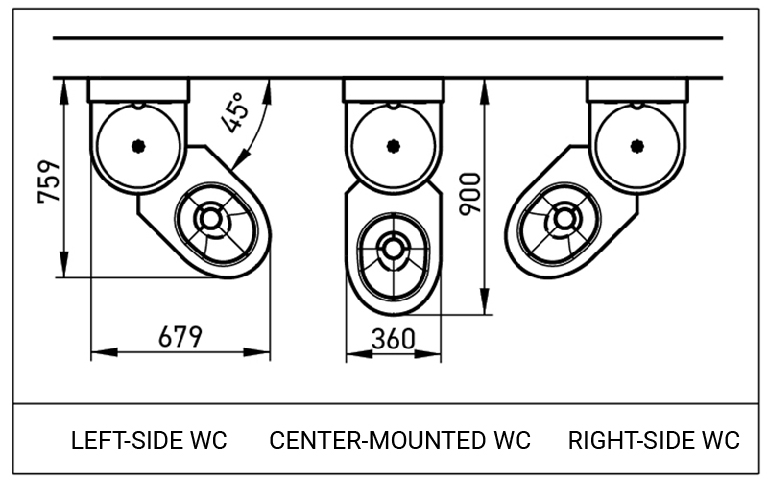

- Dimensions
- W679 x D759 x H1005 mm angled WC version

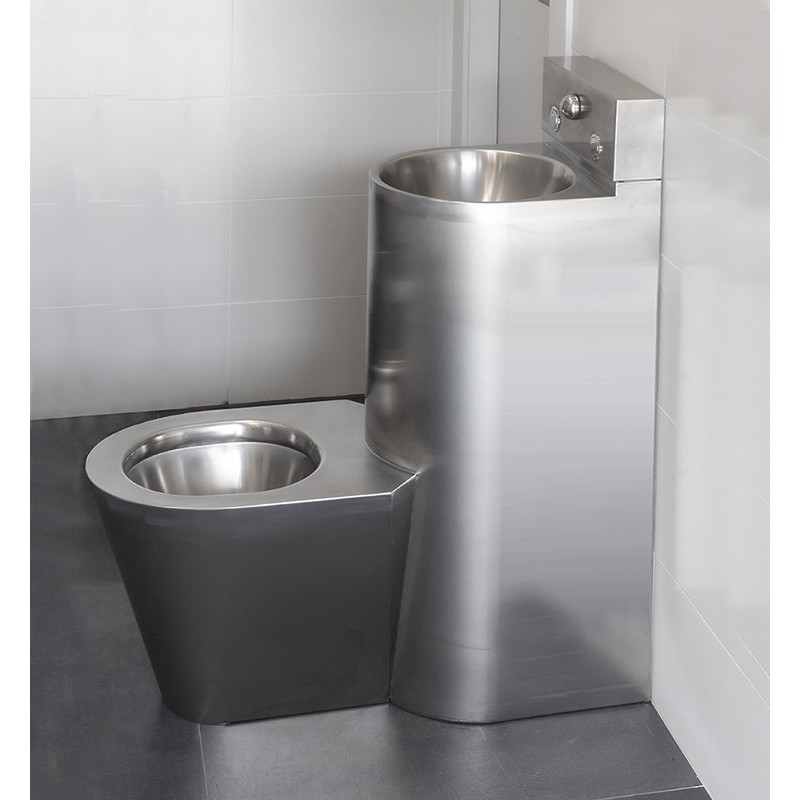

W360 x D900 x H1005 mm centered WC version - Warranty
- 10 years
- Outlet orientation
- Horizontal
- Connection gender
- Male
- Water inlet details
- M1/2'' threaded washbasin
M3/4'' threaded WC
The COMBINEO VANDAL-PROOF WC SINK COMBO offers functionality in a compact footprint, combining durability, safety, and hygiene, specifically designed for use in prisons, psychiatric hospitals, courthouses, police stations, public restrooms...
Panel-mounted version: installation with technical duct access
Includes floor-standing WC bowl (positioned either to the left, right or center), Ø320 mm pressed basin, 2 recessed timed push-button faucets for washdown WC, and anti-blocking cold or pre-mixed water for the sink, with anti-ligature stainless spout.
AISI 304 stainless steel, brushed finish.
The combination unit is reinforced with high density polyurethane foam to prevent noise and denting.
Floor-standing WC with a minimum flush of 4 liters, integrated and welded to the body of the combo unit.
One-piece splashproof pressed bowl with a concealed rim for easy maintenance, preventing product concealment and ensuring improved hygiene.
Backsplash W150 x D85 mm, with shelf use.
2 vandal-proof integrated push-button faucets for washbasin and washdown WC.
Rounded vandal-proof AISI 304 stainless steel spout with anti-rotation feature and concealed flow regulator.
Installation:
- Washbasin: M1/2’’ threaded faucet.
10-20 seconds flow time with anti-blocking cartridge.
6LPM flow. Pressure 1.5 -5 bars (recommended 3-4 bars). Tamper-proof perforated 1 1/2” drain.
- WC: M3/4" threaded faucet, pre-connected flush pipe to bowl with Ø55 mm inlet, featuring an integrated Venturi system for effective flushing.
7-10 secondes flow time / 4-8L flush.
Ø100 mm S-trap. Rounded junction edge for easy installation.
- Mounting: Panel-mounted with 6 M10 threaded rods, 190 mm in length, along with washers and nuts (other lengths available upon request).
- Integrated grounding.
CE. Compliant with EN 997 and EN 33 (WC) + EN 14688 (washbasin) + EN 816 et EN 1112 (water regulations).
OPTIONS
- Second sink push-button faucet for hot water (Ref. ...-CF)
- With flushing for 6L tank (Ref. ...-R)
- Without backsplash
- Horizontal stainless steel drainage tube for sink
- Without backsplash, without water spout, piezo-sensitive controls, remote operation controls (up to 20 m)...
- Operation
- Temporized push button
- Material
- AISI 304 stainless steel
- Detailed composition
- 2.0 / 1.6 / 1.2 mm
- Stainless steel thickness
- 1.2 mm
1.6 mm
2 mm - Finish
- Brushed
- Water inlet
- 1/2"
3/4" - Evacuation
- Ø 100 mm
- Fixing
- Through-partition mounted
- Mounting details
- By threaded rods
- Dimensions
- W679 x D759 x H1005 mm angled WC version
W360 x D900 x H1005 mm centered WC version - Warranty
- 10 years
- Outlet orientation
- Horizontal
- Connection gender
- Male
- Water inlet details
- M1/2'' threaded washbasin
M3/4'' threaded WC
