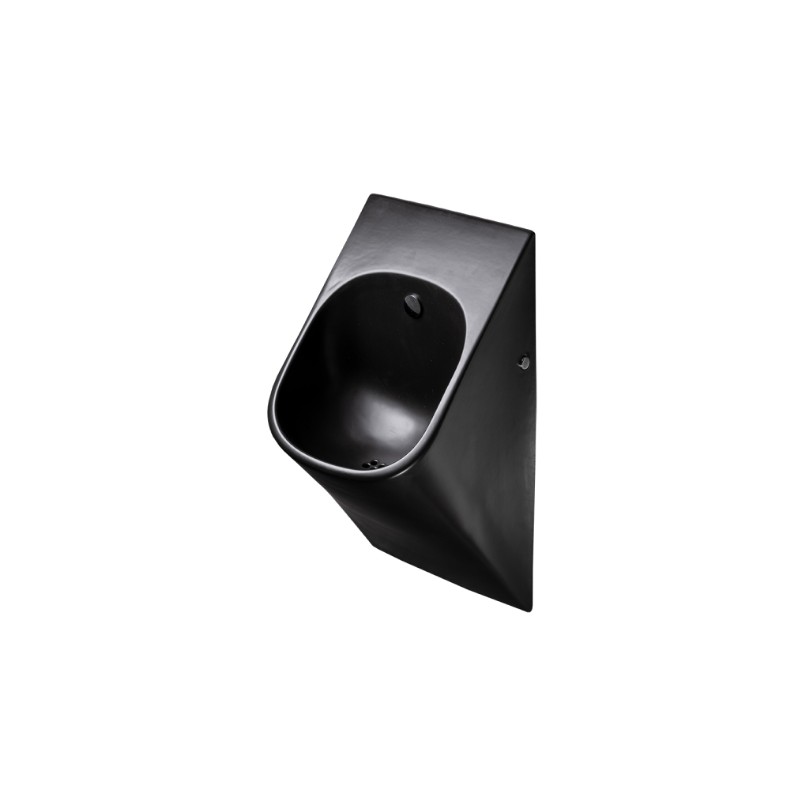

Photo Automatic urinal black finish S89S

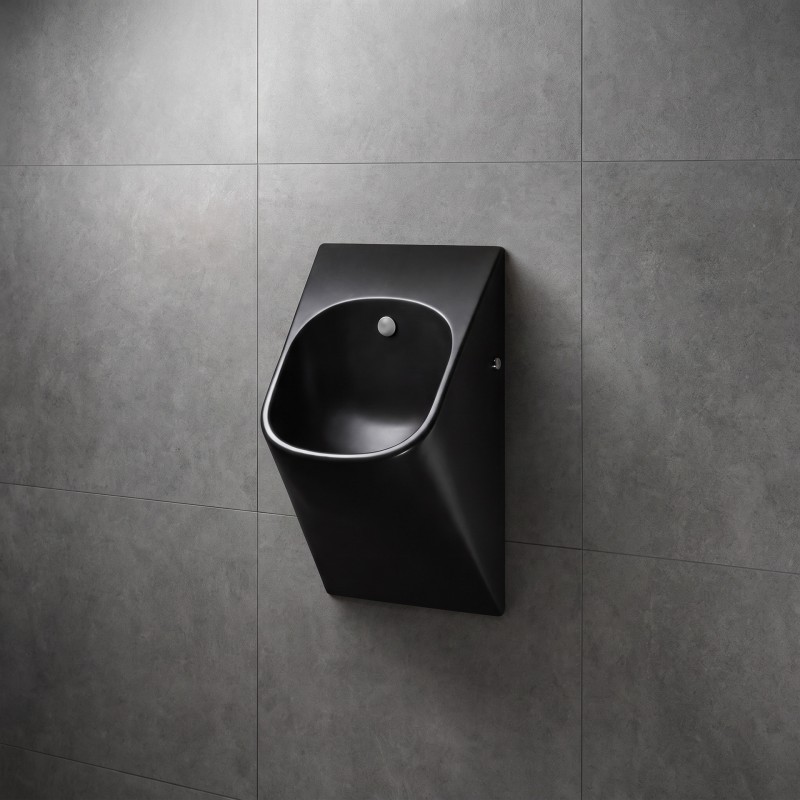

Automatic black urinal LA FONTANA

sleek design, matte black finishing

Ref. : S89S

€1,695.00 excl. VAT

Tax excluded

Choose a model

Quantity

Ask a question

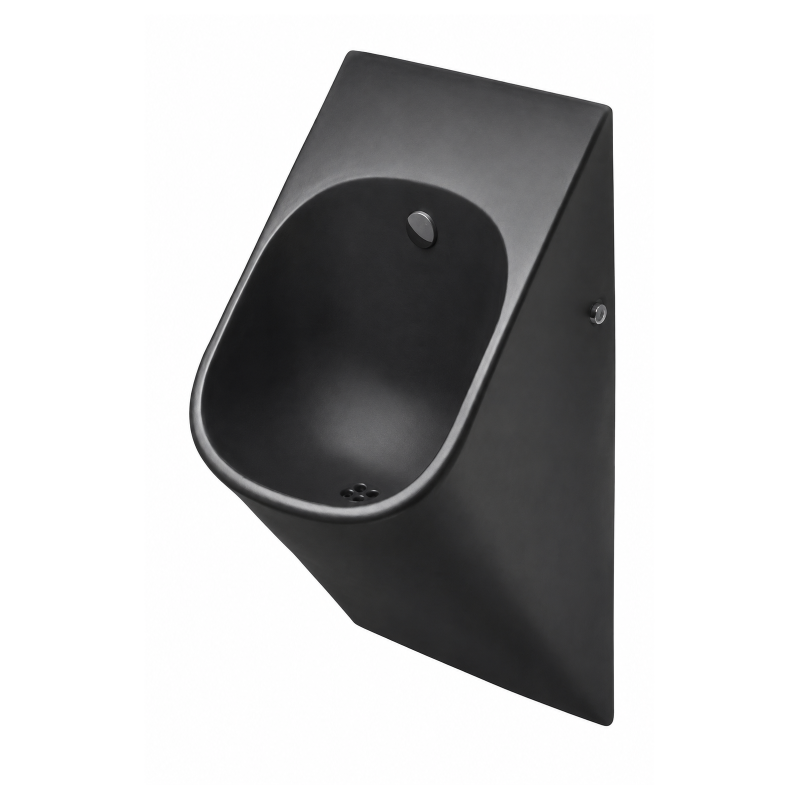

BLACK CERAMIC URINAL WITH AUTOMATIC CONCEALED FLUSH LA FONTANA

Designed for public sanitary spaces with high attendance or for modern sites.
With its design shape, this 1-liter s-trap system urinal allows you to save on water and to eliminate unpleasant smells.

Mains operated : item S89S with external transformer (to add, see options below) or S89Z with integrated transformer.

- 1L economical flush
- easy assembly with the template included
- rinsing radar concealed behind the ceramic, with selenoid valve and shut-off valve
- activation only when the urinal is used (takes into consideration the urine or water movement)
- adjustable flush duration from 0,5 to 15,5 sec.
- minimum use time adjustable before flushing from 6 to 15 sec.
- adjustable settings by SLD04 remote control (no need to disassemble the urinal)
- automatic flush after 6 hours without use
- possibility to adjust the flow by a stop valve
- water s-trap refill after each flush

OPTIONS:

Remote control SLD04
Transformer box 230/24V by electrical supply SPZ07 (ref. SPZ07)
Transformer box 230/24V to supply 1 urinal SPZ06 (ref. SPZ06)
Transformer box to supply up to 5 urinals SPZ02 (ref. SPZ02)
Transformer box to supply up to 9 urinals SPZ01 (ref. SPZ01)
On request rail DIN transformer

Sensor: Radar concealed behind the ceramics
Electrical supply: External transformer 230/24 V or mains 230 V
Consumption: 8W on 24V
Material: Black ceramic
Water inlet: Threaded M1/2''
Evacuation: Ø 50 mm
Pressure: 1-6 bars
Flow rate: 12 LPM.
Flush volume: 1 L (adjustable 0.5 to 4 LPM.)
Operation settings: Adjustable by remote control SLD04 : Detection sensitivity, flow time, interval rinse, temporary off...
Dimensions: W330 x D300 x H610 mm
Warranty: Electronic 5 years
