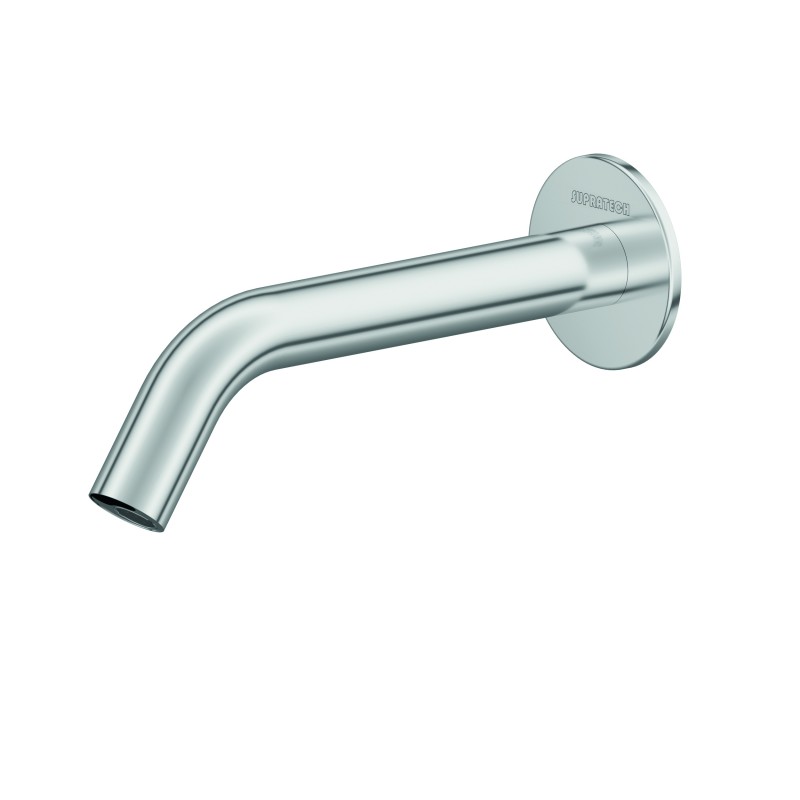

Electronic wall mounted faucet EXTREME WS

concealed sensor


€312.00 Net Price

Tax excluded
Choose a model

Touch-free wall-mounted electronic faucet, for cold or premixed water.

  • Activated by a concealed sensor integrated into the spout, allowing a quicker response from a shorter range.
  • Easy installation. Helps wash rooms stay clean and saves on water.
  • Prevents cross contamination. Combined with EXTREME WS touch-free electronic soap dispenser, it creates a germ-free and automated environment.


EXTREME WS electronic faucet

Product properties:
- Self-adjusting sensor. Adjustable settings by remote control: sensor range, security time, delay in, delay out, on-off and reset to factory settings.
- Power supply 9V battery box or transformer 230/9V.
- By transformer, possible to use a backup battery for normal use in case of power cut.
- Low energy consumption, battery lasts about 3 years.
- Sensor includes a low battery indicator.

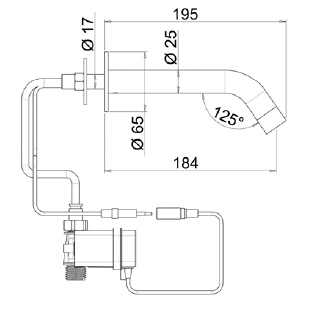

RES-901-dimensional-drawing   RES-911-dimensional-drawing
Spout tip with self-adjusting infrared sensor
Spout length
195 mm
Electrical supply
230/9V transformer or 9V alkaline battery
Security off
Shut-off after 90 seconds of uninterrupted use
Solenoid valve
External M1/2'' with filter. Includes a space for a backup battery for mains operated, in the case of a power cut.
Chrome brass
Water supply
For cold or pre-mixed water
0.3 - 8 bars
Max. temperature eligible
Flow rate
4 LPM (1.9 LPM upon request)
Operation settings
Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
3 years. CE. ACS.
