Sensor water tap built in behind a mirror
for a clean-lined washbasin area with impeccable hygiene

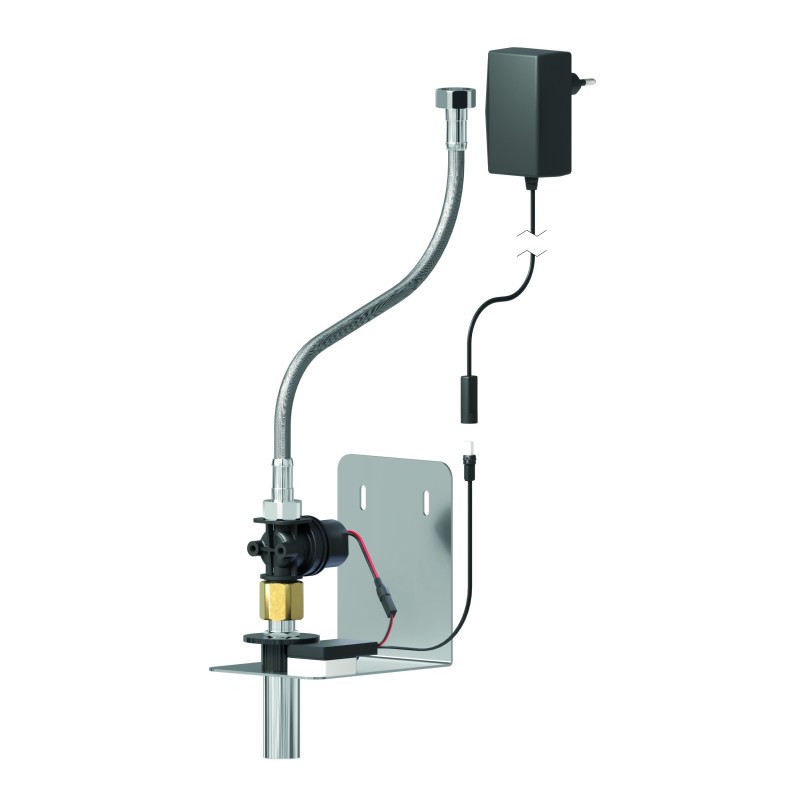

Electronic vertical automatic tap designed for behind-mirror installation, to be built in above the washbasin.
The tap is triggered by an infrared sensor and water flows as soon as hands are placed under the spout, at the position indicated.
As soon as the hands leave the sensor's detection zone, the water stops automatically.
Fully touch-free, this tap removes any need for handling and helps to limit the spread of germs.
Temperature and flow rate are preset for simple, comfortable and safe use.
Minimum distance of 30 cm below the sensor, avoiding any shiny surface.
- Sensor
- Infrared
- Detection adjustment
- Self-adjusting
- Power supply
- 9V battery
230/9V transformer - Hygienic rinse anti-legionella
- After 24 H of non-use
- Safety shut-off
- Shut-off after 90 seconds of uninterrupted use (adjustable)
- Solenoid valve
- External M1/2'' with filter
- Material
- Brass
- Water supply
- Single supply
- Pressure
- 0.5 - 8 bars
- Max. eligible temperature
- 70°C
- Flow rate
- 5 LPM (on demand 1.9 LPM)
- Operation settings
- Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
- Warranty
- 3 years
- Certification
- ACS
- Marking
- CE
- Water supply details
- Single supply: cold water or pre-mixed water (mixed upstream)
