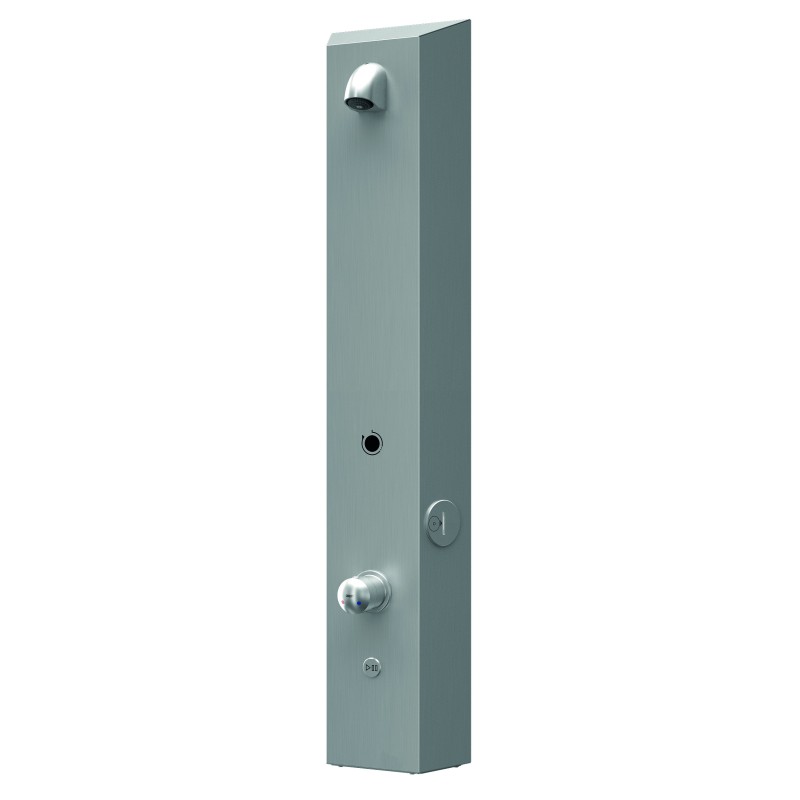

Shower panel in stainless steel with integrated token timer
with water temperature settings
Wall shower panel in stainless steel with timer token operated, for cold and hot water with mixing button, 24 V
• after inserting a coin SA-52 in the panel, the shower is immediately set off after pressing on a mechanical button.
• the water flows by pressing a button, to start off with 10 red LED diodes, then a countdown of diodes with the remaining shower time.
• the user can start and stop the water flow directly in the shower.
• 30 s before the end, the user is averted by a brief interruption of the water flow.
• receptacle integrated for tokens, lock for emptying from the bottom.
• the water flows by pressing a button, to start off with 10 red LED diodes, then a countdown of diodes with the remaining shower time.
• the user can start and stop the water flow directly in the shower.
• 30 s before the end, the user is averted by a brief interruption of the water flow.
• receptacle integrated for tokens, lock for emptying from the bottom.
Option RFID tokens rechargeable credit
- Power supply
- 230/24V transformer
- Hygienic rinse anti-legionella
- After 24 H of non-use (adjustable)
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1 mm
- Finish
- Brushed
- Water supply
- Mixer
- Water inlet
- 1/2"
- Pressure
- 1-6 bars
- Flow rate
- 12 LPM.
- Power consumption
- 7 W
- Duration
- To be specified when ordering
- Operation settings
- Adjustable by SLD04 remote control: interval rinse, temporary off, interval rinse time

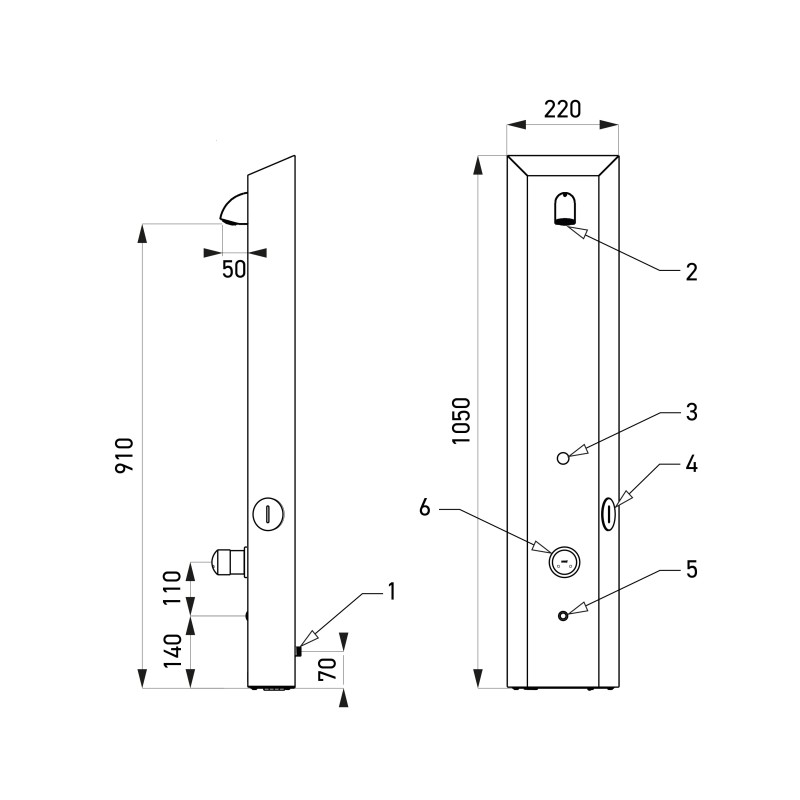

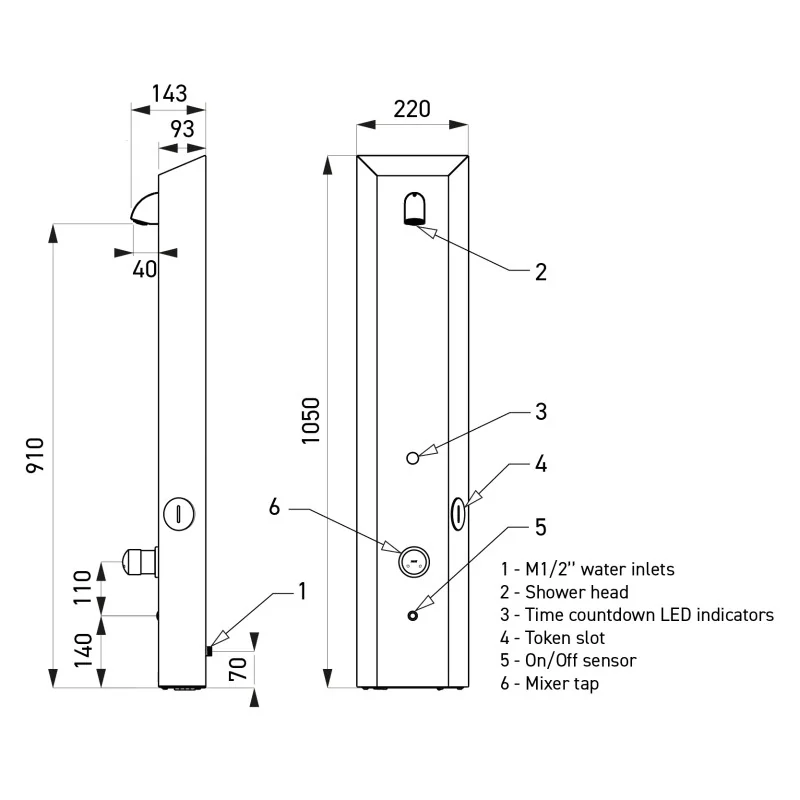

- Dimensions
- W220 x D93 (143 with shower head) x H1050 mm
- Warranty
- Electronics 5 years
- Connection gender
- Male
- Water supply details
- Mixer: hot + cold water (adjustment at the faucet)
Wall shower panel in stainless steel with timer token operated, for cold and hot water with mixing button, 24 V
• after inserting a coin SA-52 in the panel, the shower is immediately set off after pressing on a mechanical button.
• the water flows by pressing a button, to start off with 10 red LED diodes, then a countdown of diodes with the remaining shower time.
• the user can start and stop the water flow directly in the shower.
• 30 s before the end, the user is averted by a brief interruption of the water flow.
• receptacle integrated for tokens, lock for emptying from the bottom.
• the water flows by pressing a button, to start off with 10 red LED diodes, then a countdown of diodes with the remaining shower time.
• the user can start and stop the water flow directly in the shower.
• 30 s before the end, the user is averted by a brief interruption of the water flow.
• receptacle integrated for tokens, lock for emptying from the bottom.
Option RFID tokens rechargeable credit - Power supply
- 230/24V transformer
- Hygienic rinse anti-legionella
- After 24 H of non-use (adjustable)
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1 mm
- Finish
- Brushed
- Water supply
- Mixer
- Water inlet
- 1/2"
- Pressure
- 1-6 bars
- Flow rate
- 12 LPM.
- Power consumption
- 7 W
- Duration
- To be specified when ordering
- Operation settings
- Adjustable by SLD04 remote control: interval rinse, temporary off, interval rinse time
- Dimensions
- W220 x D93 (143 with shower head) x H1050 mm
- Warranty
- Electronics 5 years
- Connection gender
- Male
- Water supply details
- Mixer: hot + cold water (adjustment at the faucet)
