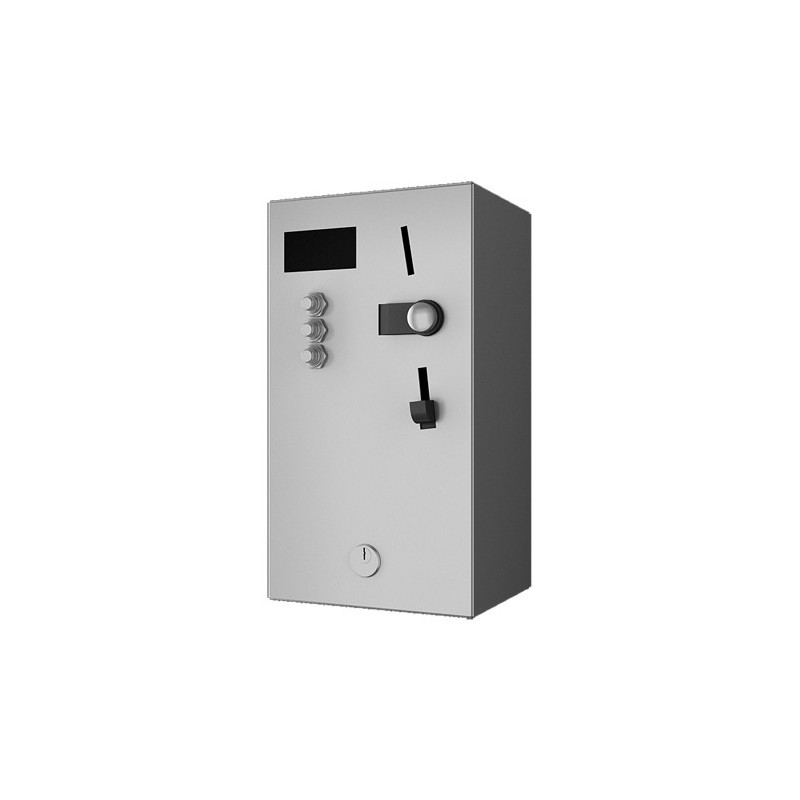

Photo Coin-operated shower timer for camping, sports hall, communities... SA-01M
  • Miniature-0 Coin-operated shower timer for camping, sports hall, communities... SA-01M

Coin or token operated timer for up to 3 showers

to control the usage from 1 to 3 showers in collective spaces

SA-01M

€1,715.00 excl. VAT

Tax excluded
Operation timer function
Quantity

Wall-mounted timer for 1 to 3 showers with 1€ or 2€ coins, or tokens (accepts all 3)

Solenoid valve opening controlled by coin or token.

User shower selection: before inserting the coin or token, the user selects the shower by pressing a button, then the shower number is displayed on the screen.

Two operating modes:

1 - Direct control = water flows 30 seconds after coin insertion for a fixed time (adjustable 0 - 255 sec)

2 - Interactive control = the user turns on the water flow directly.
Installation with a shower tap featuring a sensitive Piezo operating button, connected to the timer. Flow time is calculated when the shower is turned on, with a maximum interruption time of 4 minutes (these 4 minutes include the time between room insertion and shower start-up).
Factory-set limit of 4 minutes to avoid blocking the shower for following users if the time set per user is not used (adjustable by remote control).
Configuration available on request.

The timer will add up the coins but will not give them back.

Settings can be adjusted using the SLD05 remote control (setting of shower time according to room or token inserted, start-up delay, activation of periodic hygiene rinse, token value, display contrast, option to turn off certain showers).

Vandal-proof.

Periodic hygiene rinse.

The user is warned by a brief stop in the water flow 30 seconds before the end.

Possibility of obtaining usage statistics and on-screen device diagnostics.

With lock.

For internal use (+5 to 40°C).

Electrical supply
230/24V transformer
Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
1 mm
Finish
Brushed
Duration
To be specified when ordering
Operation settings
Adjustable SLD05 remote control: sensitivity, flushing time, use time, on/off
Dimensions
W165 x D132 x H300 mm
Warranty
Electronic 5 years
