Photo Wall mounted and utomatic foam soap dispenser behind the mirror RES-48M

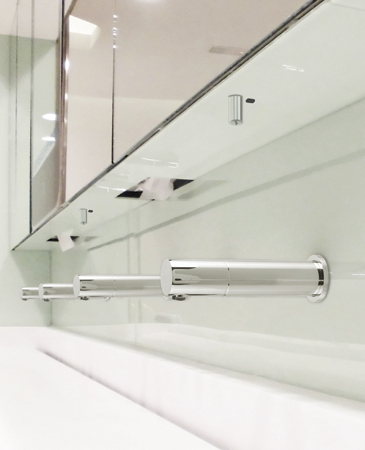

Automatic foam soap dispenser to integrate behind a mirror

All is in the bubble ! More soap with less consumption

Ref. : RES-48M

€273.00 Net Price

Tax excluded

Quantity

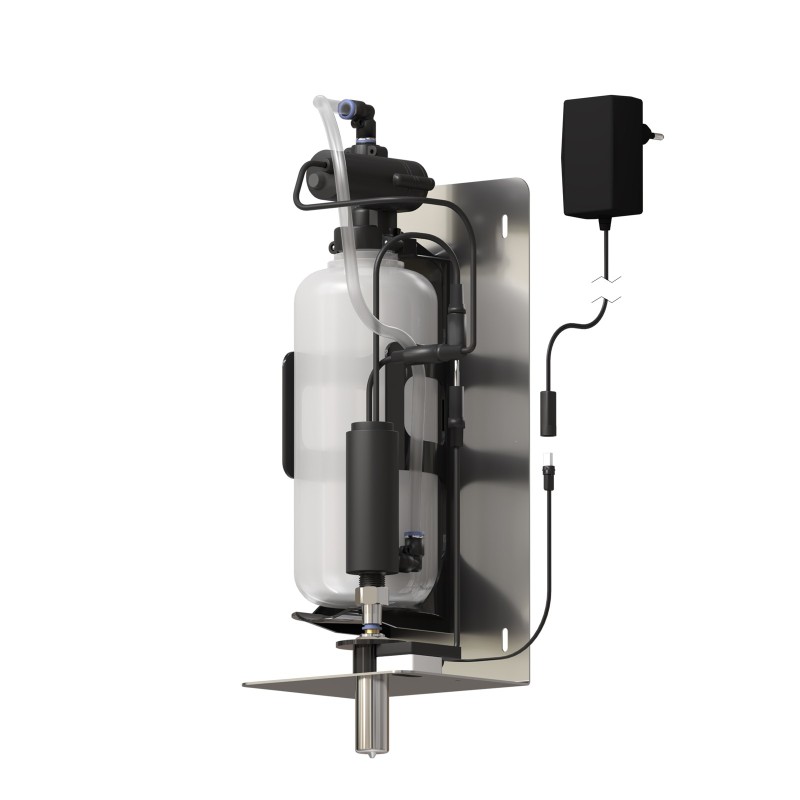

Automatic soap dispenser with infrared detection to integrate behind a mirror.
For a drastic soap consumption reduction and a pleasure to use.

- Power supply, 230/12 V transformer.
- The brass vandal proof manufacturing allows the installation on exposed site.
- Touch-free, to protect from crossed contamination risks.
- Peristaltic pump: the soap is driven into the soap tube without contact with the pump, preventing contamination and backflow.
- Accurate soap dosage.
- To be used with non-proprietary soap for maximum savings.
- Soap dosage and air to increase foam soap which is adjustable by remote control RES-39.
- Easy to install and refill.
- 2 years warranty.

OPTIONS:

Remote control RES-39
6 L soap tank to supply from 1 to 6 dispensers (ref. RES-790)
230/12V IP 68 transformer to supply from 1 to 4 dispensers (ref. RES-294)
Junction box 230/12V to supply from 1 to 10 dispensers (ref. RES-296)
Electronic faucet matching design

Sensor: Self-adjusting infrared
Electrical supply: 230/12V transformer
Capacity: 1 L tank (6 L option)
Soap: Foam soap (viscosity 0-100 cPs)
Dosage: 0.7 to 0.9 cm³ depending on soap viscosity (adjustable by remote control)
Pump: Peristaltic pump with air compressor (foaming effect)
Material: Chrome brass
Operation settings: Adjustable by remote control RES-39 : soap quantity, air quantity for foam effect, refill the tank, temporary off, reset to factory settings.
Warranty: 2 years
