Recessed stainless steel convertible bin and towel dispenser combo unit
Recessed stainless steel convertible bin and towel dispenser combo unit

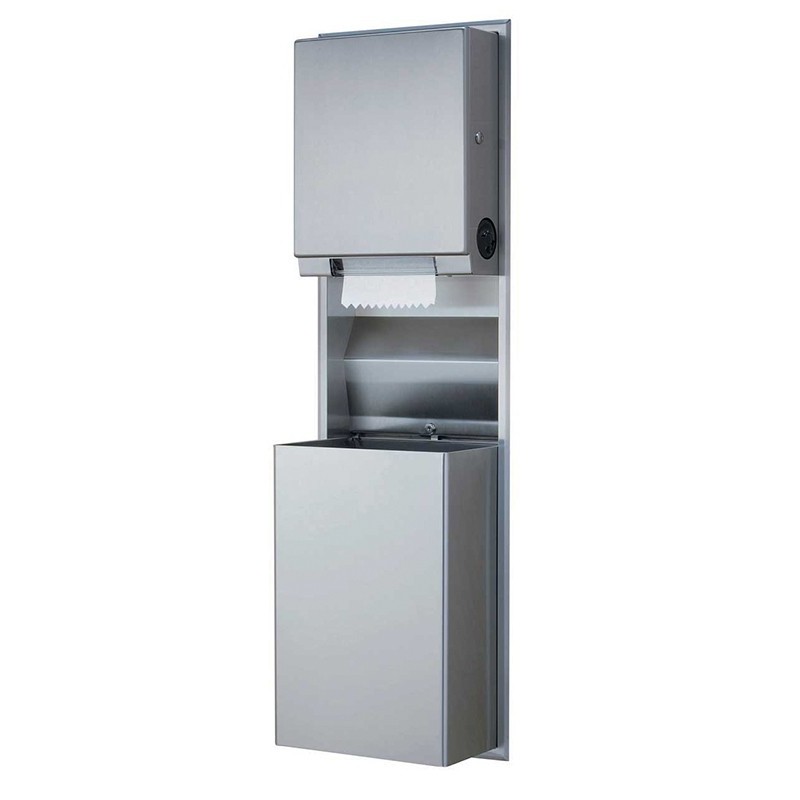

Convertible recessed stainless steel unit with paper towel dispenser and 68 L bin

Prevents supply disruption with automatic transfer to a new roll

BO-39617
€1,310.00 Tax Excl.

Recessed stainless steel high-capacity convertible unit consisting of a paper towel dispenser and a bin (with interchangeable modules).

The dispenser features a rounded and hemmed opening to dispense paper towels without tearing them.
Keyed lock closure.
Large waste bin secured within the recessed housing by a keyed lock, removable for maintenance.
Upper edges are hemmed for safe handling.
Complete solution with a contemporary design that saves space, simplifies maintenance, and provides an optimal user experience.

AISI 304 stainless steel brushed finish, 0.8 thickness.
Beveled pressed frame in a single piece, featuring corners without visible joints.
Fully welded flush-mounting box.
Dispenser for universal non-perforated roll Ø 205 mm, width 205 mm, length 244 m, and core Ø 38 to 51 mm.
Dispenses one 305 mm long sheet at a time.
The detection (adjustable 10, 15, or 20 cm) automatically dispenses the sheet when hands approach beneath the dispenser.
Reserve for end-of-roll use; automatic transfer to a new roll from the end of the roll up to Ø 90 mm to prevent supply disruption.
Side handle to advance the paper if necessary and to initiate the reload
One-piece 0.9 mm thick recessed door secured with a full-length stainless steel piano hinge and equipped with a keyed lock.
Removable 68 L waste bin with key.

Dimensions: W437 x D306 x H1420 mm (including 100 mm recess)
Wall cutout: W403 x D100 x H1387 mm

CE. 2 year warranty.

OPTIONS :

  • BO-3974-350 : Touch-free universal dispenser for paper towel rolls with automatic operation and LED indicator
    Distributeur automatique d'essuie-mains sans contact avec LED
  • Mat black finish
  • BO-38032: Semi-recessed version with a recess depth of 92 mm and a 24 L bin
  • BO-38034: SLIM 92 mm recessed version and 14.4 L waste bin
Paper

Non perforated roll max Ø 205 mm
Capacity
68 L waste bin
Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
0,8 mm
Finish
Brushed
Rough wall opening
W403 x D100 x H1387
Dimensions
W437 x D206 x H1422 mm
Warranty
2 years. CE.

3d_rotation BO-39617 (rfa)

Recessed stainless steel high-capacity convertible unit consisting of a paper towel dispenser and a bin (with interchangeable modules).

The dispenser features a rounded and hemmed opening to dispense paper towels without tearing them.
Keyed lock closure.
Large waste bin secured within the recessed housing by a keyed lock, removable for maintenance.
Upper edges are hemmed for safe handling.
Complete solution with a contemporary design that saves space, simplifies maintenance, and provides an optimal user experience.

AISI 304 stainless steel brushed finish, 0.8 thickness.
Beveled pressed frame in a single piece, featuring corners without visible joints.
Fully welded flush-mounting box.
Dispenser for universal non-perforated roll Ø 205 mm, width 205 mm, length 244 m, and core Ø 38 to 51 mm.
Dispenses one 305 mm long sheet at a time.
The detection (adjustable 10, 15, or 20 cm) automatically dispenses the sheet when hands approach beneath the dispenser.
Reserve for end-of-roll use; automatic transfer to a new roll from the end of the roll up to Ø 90 mm to prevent supply disruption.
Side handle to advance the paper if necessary and to initiate the reload
One-piece 0.9 mm thick recessed door secured with a full-length stainless steel piano hinge and equipped with a keyed lock.
Removable 68 L waste bin with key.

Dimensions: W437 x D306 x H1420 mm (including 100 mm recess)
Wall cutout: W403 x D100 x H1387 mm

CE. 2 year warranty.

OPTIONS :

  • BO-3974-350 : Touch-free universal dispenser for paper towel rolls with automatic operation and LED indicator
    Distributeur automatique d'essuie-mains sans contact avec LED
  • Mat black finish
  • BO-38032: Semi-recessed version with a recess depth of 92 mm and a 24 L bin
  • BO-38034: SLIM 92 mm recessed version and 14.4 L waste bin

Paper

Non perforated roll max Ø 205 mm
Capacity
68 L waste bin
Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
0,8 mm
Finish
Brushed
Rough wall opening
W403 x D100 x H1387
Dimensions
W437 x D206 x H1422 mm
Warranty
2 years. CE.

3d_rotation BO-39617 (rfa)
