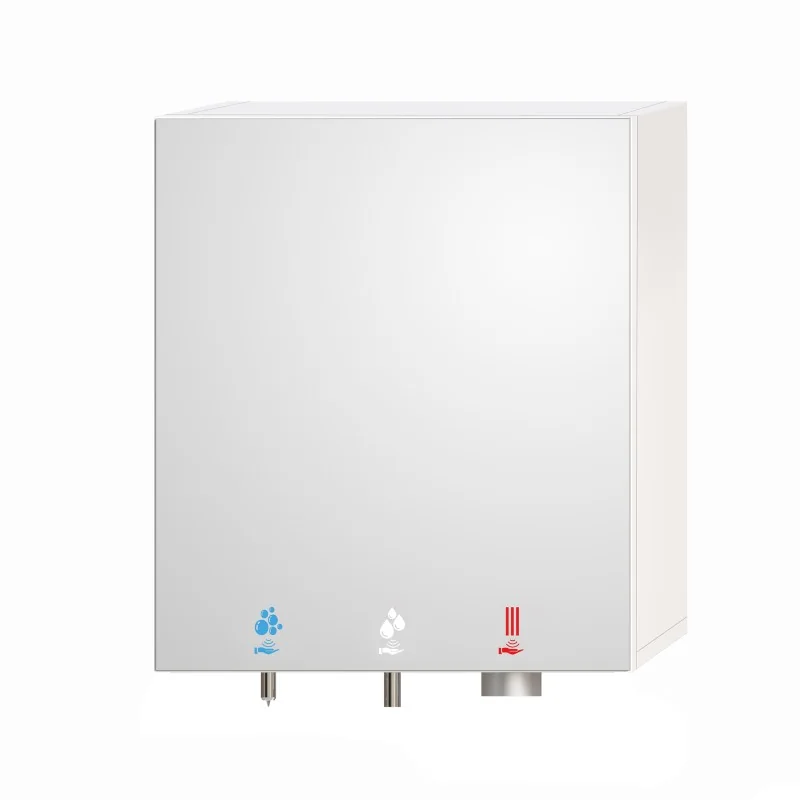

HYFLO 4in1 "mirror-soap-water-air" cabinet
All in one and ready to install HYFLO mirror cabinet, width 600, with integrated soap dispenser, automatic tap and hand dryer
RES-850
€2,190.00
Tax Excl.
The HYFLO multifunction mirror cabinet is a practical all-in-one solution featuring an automatic liquid or foam soap dispenser, an electronic faucet with thermostatic premixer,and a touch-free high-speed hand dryer.
Aimed at public sanitary spaces, the HYFLO all-in-one mirror unit offers a modern and functional solution which enhance hygiene and comfort, while saving water, soap and energy thanks to its automatic touch-free activation.
Its minimalist design integrates discreetly into the architecture, optimizes space, facilitates maintenance and ensures easy installation.
Fully enclosed, it provides excellent durability, prevents vandalism, and maintains clean, organized spaces through concealed faucets and a central module above the washbasin.
Hygiene: all functions are automatically activated by placing your hands in the sensor area and then stops once your hands are removed.
A complete hand washing cycle while keeping the spaces clean: no visible faucets, users don't have to move around with wet hands and any water that drips during drying is collected directly above the sink...
Illuminated pictograms on the mirror (color selection: blue, white, red, or green), and vertical spouts and visible stainless steel nozzle to indicate hand placement in public spaces and to facilitate use.
An easy access 7L soap tank for filling (foam or liquid soap).
Easy soap service:
- without any lid to unscrew, simple flap
- without any pipes, avoids soap from leaking
- large bottle neck, filled without funnel
- large capacity 7L, reduces interventions
All components (solenoid valve, pump, sensors, transformer, shut-off valve, mixing valve…) easy to access fora quick and easy service.
Lock with automatic closing, cylinder protected by a stainless steel cover against moisture and dirt (prevents against theft end vandalism).
Installation: the unit is easy to mount on the wall thanks to its stainless steel suspension rail. It requires only a single power supply line, and the water lines simply connect to the mixing valve, for a quick and ready-to-use installation.
STAINLESS STEEL TECHNICAL PLATE
CHARACTERISTICS
- Cabinet made of 19 mm white hydro-resistant melamine panels, white PVC edge banding 1 mm,cabinet underside and door in 19 mm white Komacel (rot-proof), ensuring perfect stability even in case of repeated contact with water or in highly humid environments.
- Safety mirror, 6 mm thick, with safety backing film.
- Upward-opening door with 2 swing-up flap arms with integrated soft-close damping and 2 concealed hinges.
- Components assembled on a robust stainless steel mounting plate, 1.2 mm thick. Key lock with automatic locking.
- Illuminated pictograms (color options: blue, white, red or green), hand logo with detection from below, exposed vertical spouts and stainless steel nozzle naturally guiding hand positioning in public areas and facilitating use.
- Soap dispenser operating with a peristaltic pump for precise soap dosing. Automatic shut-off without dripping.
Large 7 L soap reservoir, easily accessible for refilling with foam or liquid soap.
Liquid soap viscosity: 100–3800 cPs; foam soap: 0–100 cPs. pH 5.5 to 8.5. - F3/8’’ thermostatic pre-mixer for tempered water (hot water supply on request). Shut-off valve included.
- Vertical faucet with auto-adjusting infrared detection, flow rate 6 L/min (1.9 L/min on request).
Safety shut-off after 90 seconds of continuous flow. Water pressure: 0.5–8 bar. Periodic anti-legionella flushing. - High-speed hand dryer, nominal power 920 W (minimum setting 350 W). Hot air / ambient air switch. White-finished steel cover.
Hand drying time: 9 seconds(according to UL hand dryer PCR method). Adjustable air flow and noise level (67.4 to 71.2 dB at 1 m). - Dimensions: W600 × D256 × H700 mm. To be installed in series for collective washbasins.
- Modular mirror cabinet, customizable in dimensions and number of integrated components – please consult us.
OPTIONS:
- Limited 1,9LPM flow rate
- Remote control RES-30 settings for water tap and soap dispenser
- Hand dryer with HEPA filter and brushless motor
- Visual low soap level indicator
- Magnetic lock (keyless)
- LED mirror with side lighting (make-up), with or without motion sensor activation
- Anti-fog mirror (for installation near shower exits)
- Paper towel dispenser
- Module components of your choice
- Upper mirrored cabinet H300 mm for a total mirror cabinet height of 1000 mm (ref. MH)
- Furniture finishin with optional color or decor
- LED strip integrated into the furniture, on the top and/or bottom, with or without motion sensor
- White LEDS only
- Electrical insulation
- Class I
- Material
- 19mm white hydro melamine panel with 1mm white PVC-coated edges
Cabinet base and door in 19 mm white Komacel
Components plate support in 1.2mm thick AISI 304 stainless steel - Mirror
- 6 mm thick clear mirror with shatterproof film backing, polished edges
- Electrical supply
- 230 V 50/60Hz. 0.92 KW
- Water supply
- Mixer: hot + cold water (adjustment at the faucet)
- Water inlet
- F 3/8''
- Fixing
- Wall-mounted on stainless steel rails
- Dimensions
- W600 x H700 x D255 mm
- Warranty
- 3 years
The HYFLO multifunction mirror cabinet is a practical all-in-one solution featuring an automatic liquid or foam soap dispenser, an electronic faucet with thermostatic premixer,and a touch-free high-speed hand dryer.
Aimed at public sanitary spaces, the HYFLO all-in-one mirror unit offers a modern and functional solution which enhance hygiene and comfort, while saving water, soap and energy thanks to its automatic touch-free activation.
Its minimalist design integrates discreetly into the architecture, optimizes space, facilitates maintenance and ensures easy installation.
Fully enclosed, it provides excellent durability, prevents vandalism, and maintains clean, organized spaces through concealed faucets and a central module above the washbasin.
Hygiene: all functions are automatically activated by placing your hands in the sensor area and then stops once your hands are removed.
A complete hand washing cycle while keeping the spaces clean: no visible faucets, users don't have to move around with wet hands and any water that drips during drying is collected directly above the sink...
Illuminated pictograms on the mirror (color selection: blue, white, red, or green), and vertical spouts and visible stainless steel nozzle to indicate hand placement in public spaces and to facilitate use.
An easy access 7L soap tank for filling (foam or liquid soap).
Easy soap service:
- without any lid to unscrew, simple flap
- without any pipes, avoids soap from leaking
- large bottle neck, filled without funnel
- large capacity 7L, reduces interventions
All components (solenoid valve, pump, sensors, transformer, shut-off valve, mixing valve…) easy to access fora quick and easy service.
Lock with automatic closing, cylinder protected by a stainless steel cover against moisture and dirt (prevents against theft end vandalism).
Installation: the unit is easy to mount on the wall thanks to its stainless steel suspension rail. It requires only a single power supply line, and the water lines simply connect to the mixing valve, for a quick and ready-to-use installation.
STAINLESS STEEL TECHNICAL PLATE
CHARACTERISTICS
- Cabinet made of 19 mm white hydro-resistant melamine panels, white PVC edge banding 1 mm,cabinet underside and door in 19 mm white Komacel (rot-proof), ensuring perfect stability even in case of repeated contact with water or in highly humid environments.
- Safety mirror, 6 mm thick, with safety backing film.
- Upward-opening door with 2 swing-up flap arms with integrated soft-close damping and 2 concealed hinges.
- Components assembled on a robust stainless steel mounting plate, 1.2 mm thick. Key lock with automatic locking.
- Illuminated pictograms (color options: blue, white, red or green), hand logo with detection from below, exposed vertical spouts and stainless steel nozzle naturally guiding hand positioning in public areas and facilitating use.
- Soap dispenser operating with a peristaltic pump for precise soap dosing. Automatic shut-off without dripping.
Large 7 L soap reservoir, easily accessible for refilling with foam or liquid soap.
Liquid soap viscosity: 100–3800 cPs; foam soap: 0–100 cPs. pH 5.5 to 8.5. - F3/8’’ thermostatic pre-mixer for tempered water (hot water supply on request). Shut-off valve included.
- Vertical faucet with auto-adjusting infrared detection, flow rate 6 L/min (1.9 L/min on request).
Safety shut-off after 90 seconds of continuous flow. Water pressure: 0.5–8 bar. Periodic anti-legionella flushing. - High-speed hand dryer, nominal power 920 W (minimum setting 350 W). Hot air / ambient air switch. White-finished steel cover.
Hand drying time: 9 seconds(according to UL hand dryer PCR method). Adjustable air flow and noise level (67.4 to 71.2 dB at 1 m). - Dimensions: W600 × D256 × H700 mm. To be installed in series for collective washbasins.
- Modular mirror cabinet, customizable in dimensions and number of integrated components – please consult us.
OPTIONS:
- Limited 1,9LPM flow rate
- Remote control RES-30 settings for water tap and soap dispenser
- Hand dryer with HEPA filter and brushless motor
- Visual low soap level indicator
- Magnetic lock (keyless)
- LED mirror with side lighting (make-up), with or without motion sensor activation
- Anti-fog mirror (for installation near shower exits)
- Paper towel dispenser
- Module components of your choice
- Upper mirrored cabinet H300 mm for a total mirror cabinet height of 1000 mm (ref. MH)
- Furniture finishin with optional color or decor
- LED strip integrated into the furniture, on the top and/or bottom, with or without motion sensor
- White LEDS only
- Electrical insulation
- Class I
- Material
- 19mm white hydro melamine panel with 1mm white PVC-coated edges
Cabinet base and door in 19 mm white Komacel
Components plate support in 1.2mm thick AISI 304 stainless steel - Mirror
- 6 mm thick clear mirror with shatterproof film backing, polished edges
- Electrical supply
- 230 V 50/60Hz. 0.92 KW
- Water supply
- Mixer: hot + cold water (adjustment at the faucet)
- Water inlet
- F 3/8''
- Fixing
- Wall-mounted on stainless steel rails
- Dimensions
- W600 x H700 x D255 mm
- Warranty
- 3 years
