Electronic wash basin detection kit for faucets
for an automatic trigger touch free with the spout of your choice...
Available in finish Chrome, Matt black, Matte Gold PVD and Copper PVD.
Detection kit for touch free faucets, activated automatically by a hand movement, for cold or pre-mixed water
Solution to integrate to your sanitary facilities to optimize hygiene and to reduce drastically water consumption.

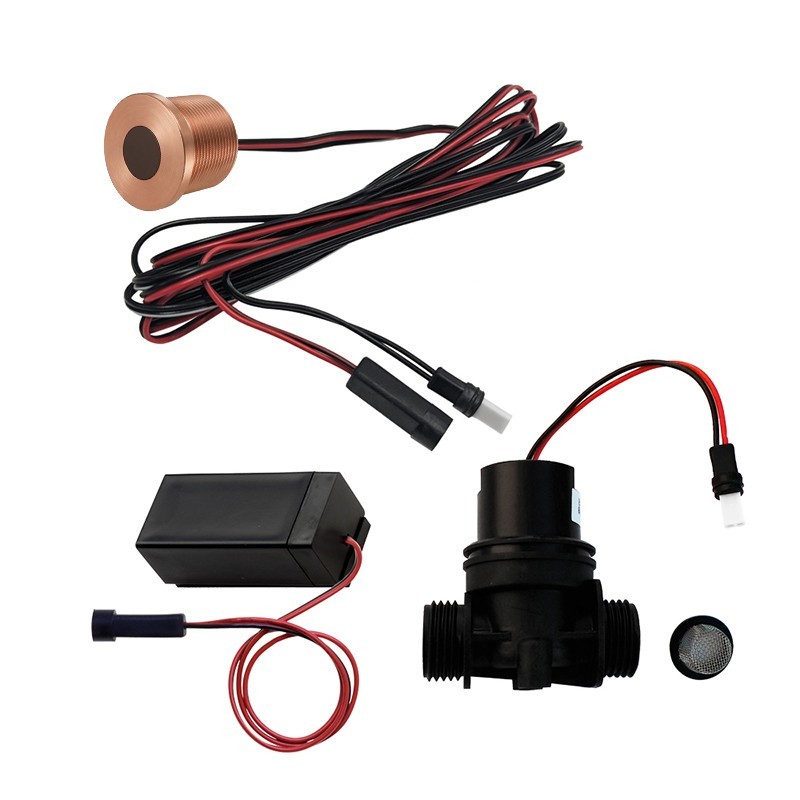

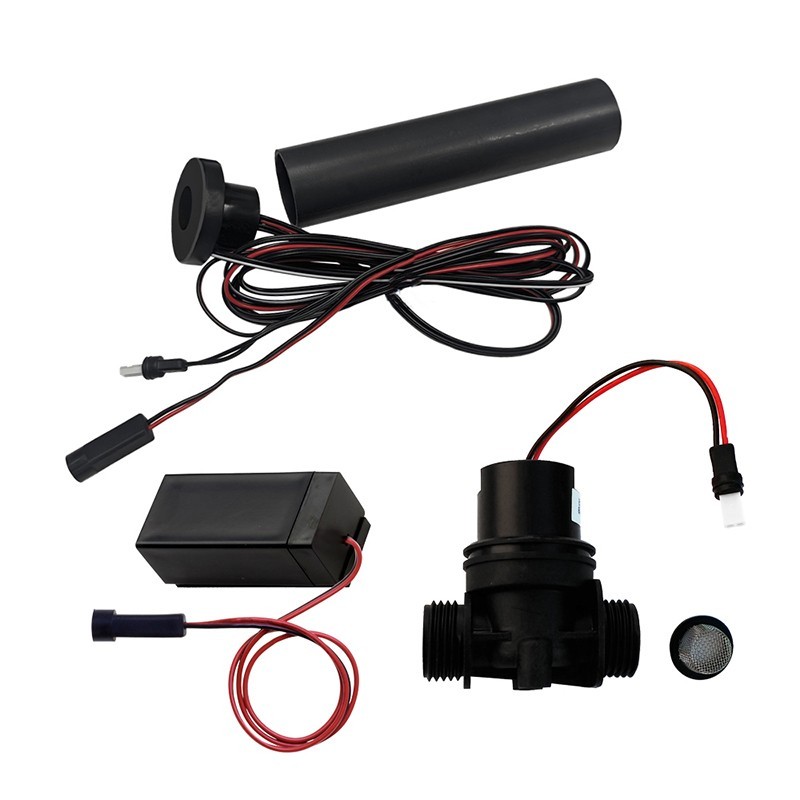

Includes infrared sensing, a solenoid valve, and power supply via a transformer or battery pack.
| The PROXI version works by detecting an object (the user) at a given distance. The detection distance is easily adjustable manually or by remote control. Water flows when hands are in the detection area and stops when they're removed. |
|
The TEMPO version allows the faucet to flow by placing your hands near the sensor area. The activation on demand eliminates the useless flows all by conserving the advantages of the touch free function. |

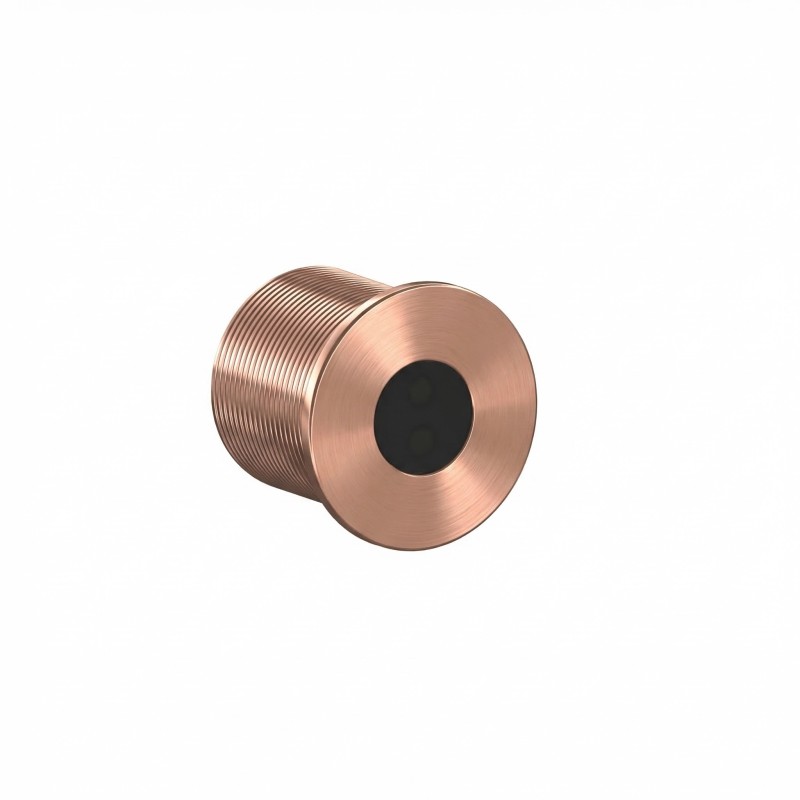

- Vandal proof. Sensor housing/body made of AISI 316 stainless steel.
- Fixation on panel from 2 to 20 mm or wall mounted by the front.
The remote control RES-31 allows to adjust the flow time, the detection length, anti-legionella hygienic rinse or anti-gel, temporary off...
- Equipement sanitaire
- Washbasin
- Sensor
- Infrared
- Sensor range
- 220 mm (adjustable from 80 to 300 mm)
- Power supply
- 9V battery
230/9V transformer - Hygienic rinse anti-legionella
- After 24 H of non-use
- Safety shut-off
- Shut-off after 90 seconds of uninterrupted use (adjustable)
- Solenoid valve
- External M1/2'' with filter
- Material
- Brass
- Pressure
- 0.5 - 8 bars
- Max. eligible temperature
- 70°C
- Fixing
- Wall recessed
Through-partition mounted - Operation settings
- Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
- Warranty
- 3 years
- Certification
- CE
Detection kit for touch free faucets, activated automatically by a hand movement, for cold or pre-mixed water
Solution to integrate to your sanitary facilities to optimize hygiene and to reduce drastically water consumption.
Includes infrared sensing, a solenoid valve, and power supply via a transformer or battery pack.
| The PROXI version works by detecting an object (the user) at a given distance. The detection distance is easily adjustable manually or by remote control. Water flows when hands are in the detection area and stops when they're removed. |
|
The TEMPO version allows the faucet to flow by placing your hands near the sensor area. The activation on demand eliminates the useless flows all by conserving the advantages of the touch free function. |
- Vandal proof. Sensor housing/body made of AISI 316 stainless steel.
- Fixation on panel from 2 to 20 mm or wall mounted by the front.
The remote control RES-31 allows to adjust the flow time, the detection length, anti-legionella hygienic rinse or anti-gel, temporary off...
- Equipement sanitaire
- Washbasin
- Sensor
- Infrared
- Sensor range
- 220 mm (adjustable from 80 to 300 mm)
- Power supply
- 9V battery
230/9V transformer - Hygienic rinse anti-legionella
- After 24 H of non-use
- Safety shut-off
- Shut-off after 90 seconds of uninterrupted use (adjustable)
- Solenoid valve
- External M1/2'' with filter
- Material
- Brass
- Pressure
- 0.5 - 8 bars
- Max. eligible temperature
- 70°C
- Fixing
- Wall recessed
Through-partition mounted - Operation settings
- Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
- Warranty
- 3 years
- Certification
- CE
