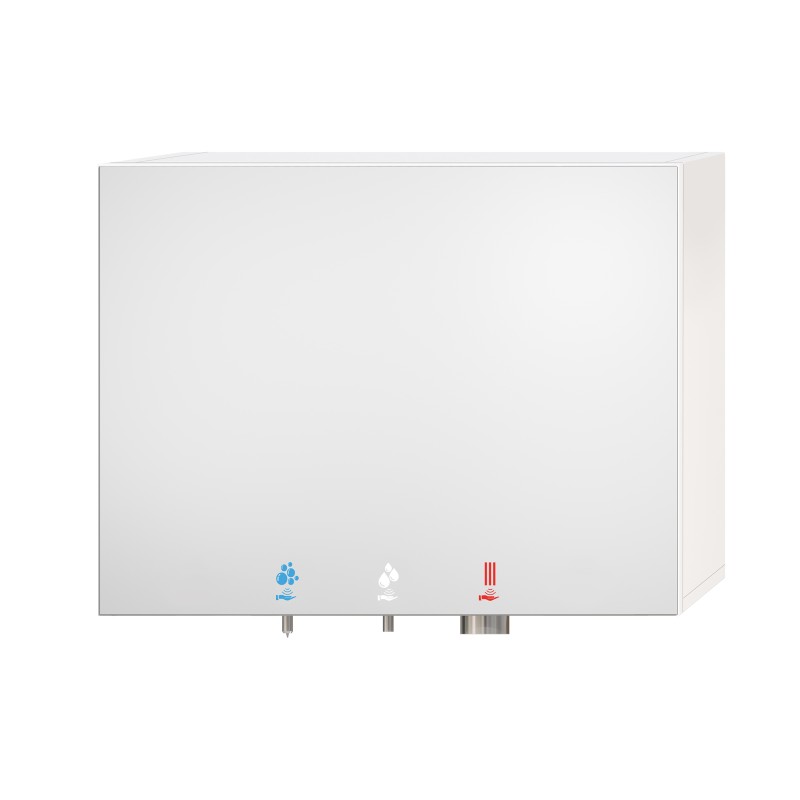

Photo HYFLO 4-in-1 mirror, soap, water and air cabinet for public restroom RES-853

HYFLO 4 in 1 "mirror-soap-water-air" cabinet, width 900 mm

All in one and ready to install HYFLO mirror cabinet, width 900 mm, with integrated soap dispenser, automatic tap and hand dryer

Ref. : RES-853

€2,685.00 excl. VAT

Tax excluded

Soap version

Option led strip

Option fixed impost Height 1000 mm

Quantity

Ask a question

HYFLO mirror cabinet to mount above a sink including an automatic soap dispenser, liquid or foam, electronic water tap with a thermostatic pre-mixer and the high speed hand dryer.

Innovative, different and clever, its concealed equipment brings a minimalist and operational design.

Perfect hygiene: the functions are automatically activated when the users hands are placed in the detection area and stop once the hands are removed. Complete hand washing cycle without needing to move, this contributes to clean sanitary spaces (avoids dirty taps; soap marks, wet floors...).

Easy to install: the unit is easy to mount on the wall thanks to its stainless steel suspension rail. It requires only a single power supply line, and the water lines simply connect to the mixing valve, for a quick and ready-to-use installation.

7L soap tank: easy to access when needing to be filled (foam or liquid soap).

Easy soap service:
- without any lid to unscrew, simple flap
- without any pipes, avoids soap from leaking
- large bottle neck, filled without a funnel
- grand capacity 7L, reduces interventions

Components assembled on a stainless steel heavy duty rugged plate 1,2 mm thickness.

Mirror modul with integrated soap, water and air features

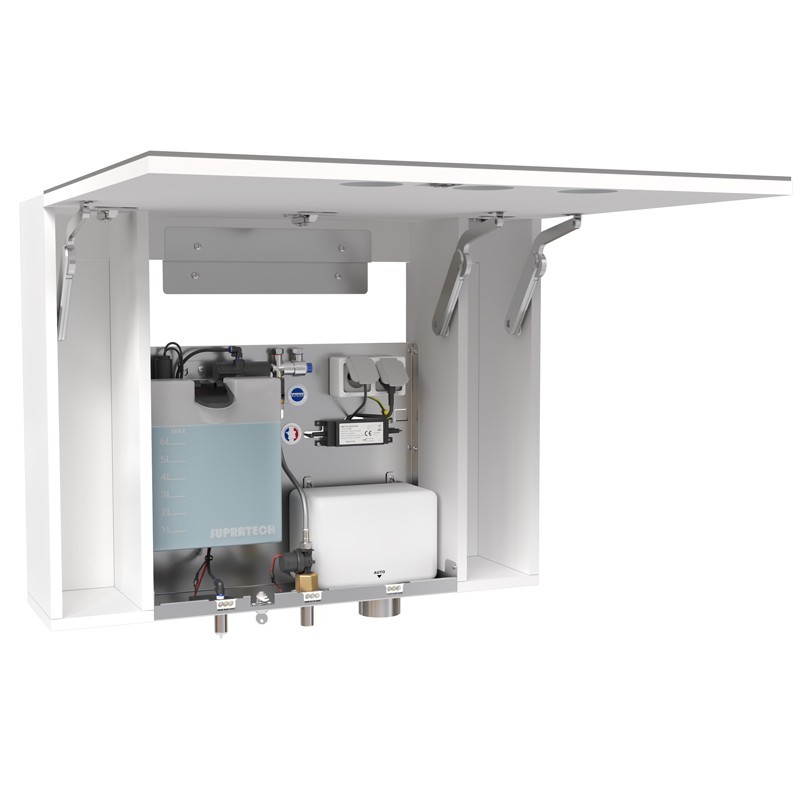

Optimized maintenance: all components (solenoid valve, pump, sensors, transformer, stopcock, mixing valve…) easy to access for a quick and easy service.

LED icons (colours of choice between blue, white, red or green), visible vertical stainless steel spouts and nozzle to indicate where to place your hands.

Lock and key (automatic locking)

CHARACTERISTICS

Cabinet made out of 19 mm thick white water-resistant melamine panel, 1 mm thick white PVC-coated edges,
cabinet base and door in rot-proof 19 mm white komacel.
6 mm thick mirror with backing film.
Lift-up door with 3 stay supports and 3 concealed hinges.
Components mounted on a robust 1.2 mm thick stainless steel plate. Key lock and automatic closure.
Illuminated pictograms (color selection: blue, white, red, or green), french/english inscription, logo for hand detection from below,
vertical spouts and visible stainless steel nozzle to indicate hand placement in public spaces and to facilitate use.
Soap dispenser operates with peristaltic pump for precise soap dosage. Closes automatically without dripping.
7L soap tank easily accessible for filling, liquid or foam soap.
Liquid soap viscosity 100-3800 cPs, foam soap viscosity 0-100 cPs. PH 5.5 to 8.5.
F3/8” thermostatic mixing valve for tempered water (without on demand).
Vertical faucet with self-adjusting infrared detection, 6 LPM flow rate (1,9 LPM on demand).
Security stop after 90 seconds without interruption. Water pressure: 0.5-8 bars. Periodic hygiene rinse to prevent Legionnaires’ disease.
High speed hand dryer 920W nominal ouput (mini. setting 350W). Hot/ambiant air switch. White finished steel cover.
Hands dried in 9 seconds (according to UL PCR hand dryer standard). Adjustable airflow and sound level (67.4-71.2 dB at 1m).
CE. 3-year warranty.
Dimensions: W900 x D256 x H700 mm.
This concept is flexible in terms of dimensions, finishes and integrated components, please contact us.

OPTIONS:

Water flow limited 1,9 LPM.
Remote control RES-30 for water tap and soap dispenser settings
White LEDs only
Visual low soap level indicator
Hand dryer with HEPA filter and brushless motor
Magnetic lock (without key)

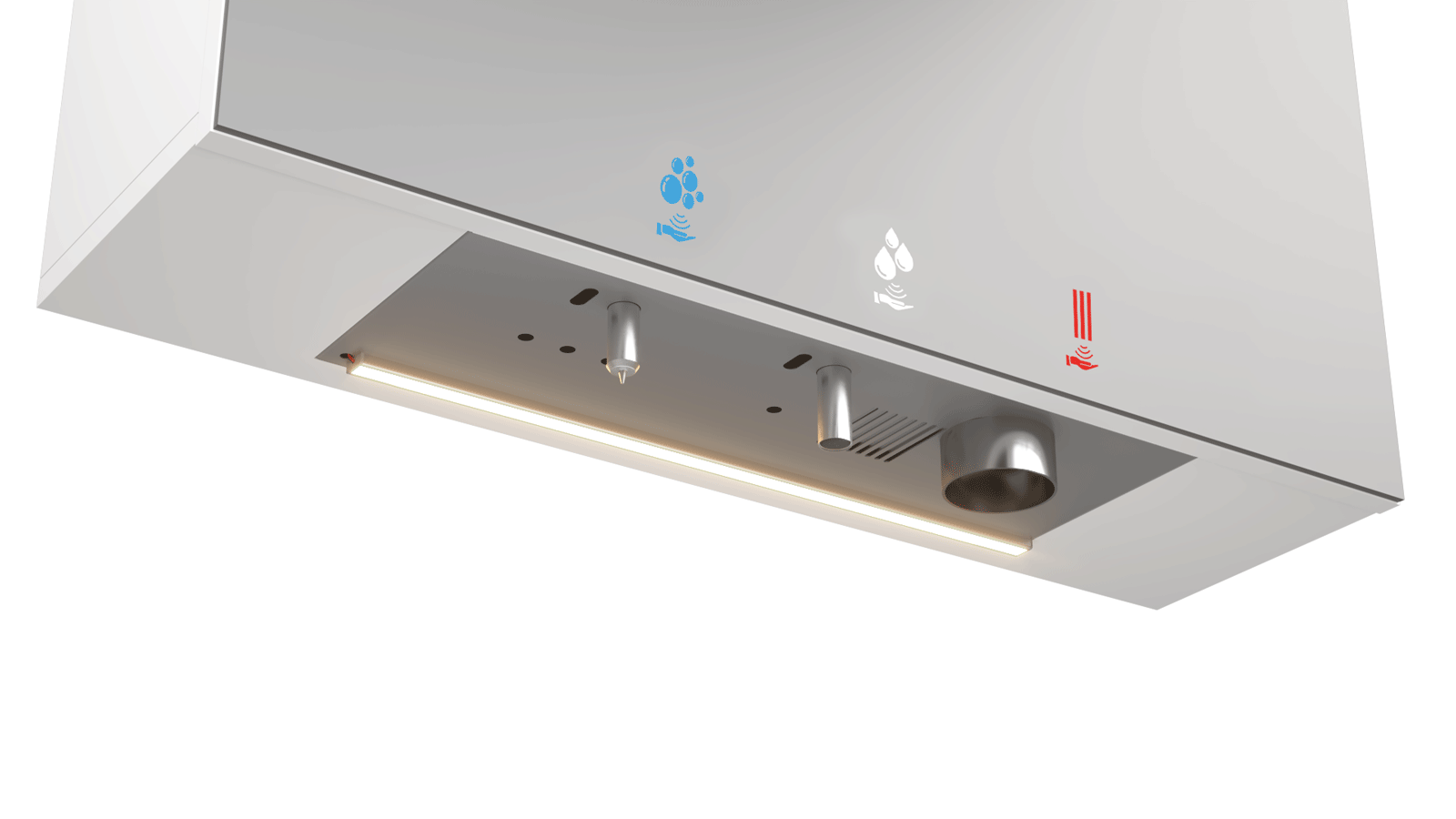

LED strip on top and/or bottom of the cabinet, with or without motion sensor
Top mirror casing H300 mm for total mirror unit height 1000mm (Ref. MH)
Paper towel dispenser
Choose your modules
Cabinet color finish

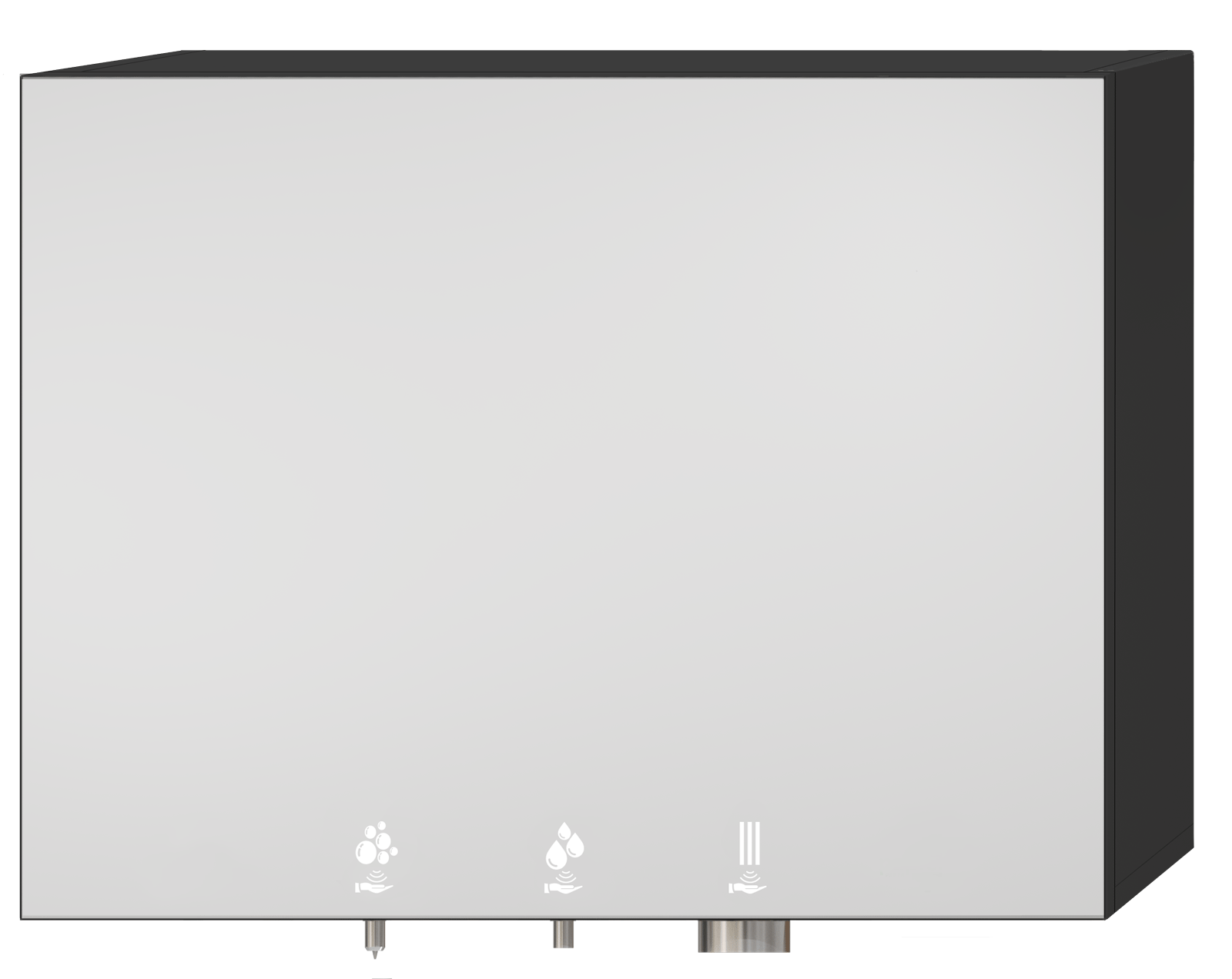

HYFLO mirror unit with soap water air pictograms, white LED

Material: 19mm white hydro melamine board with 1mm black PVC veneer edges
Supporting plate for componants in stainless steel AISI304 thickness 1,2 mm
Underside and door in white 19 mm Komacel
Mirror: 6 mm thick clear mirror with shatterproof film backing, polished edges
Electrical supply: 230 V 50/60Hz. 0.92 KW
Electrical insulation: Class I
Water supply: Cold and hot water
Water inlet: F 3/8''
Fixation: Wall-mounted on stainless steel rails
Dimensions
Warranty: 3 years
