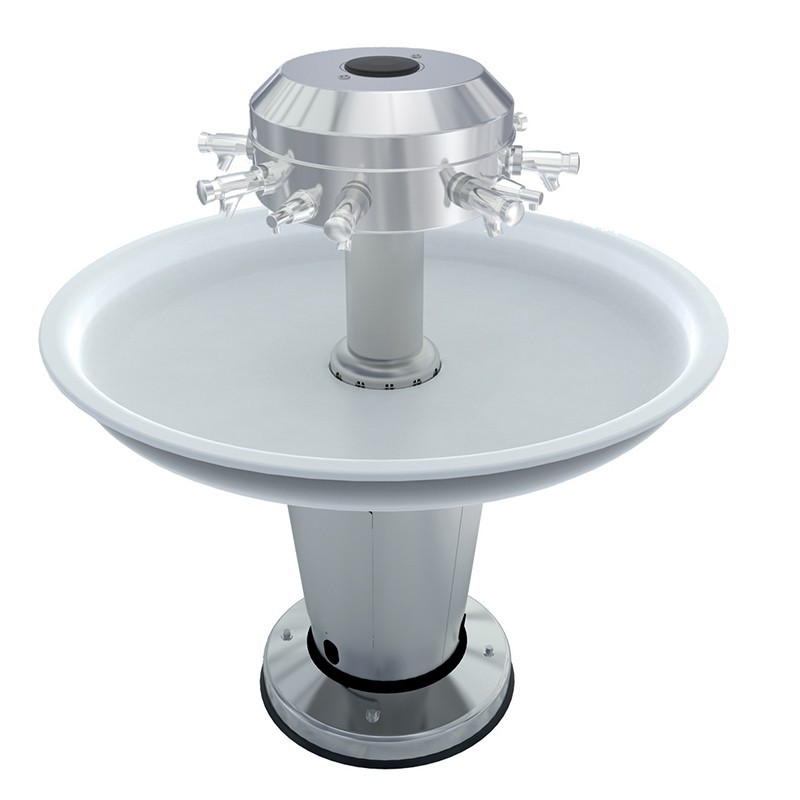

LAGOON free-standing stainless steel circular fountain washbasin with timed faucets, PRM accesss

Free-standing circular stainless steel communal washbasin with a white circular synthetic marble basin, accessible for people with reduced mobility, featuring 6 or 8 integrated timed push-button faucets for cold or pre-mixed water.

• Space-saving: Optimizes available space, allowing smooth circulation around the sink.
• Durable: Built for heavy use, combining hygiene, safety, and user comfort.
• Efficient Design: The parabolic circular basin ensures optimized water flow and minimizes splashing.
• Easy Installation: Features a single connection for both water supply and drainage.
• Optional Accessories: Soap and paper towel dispensers available.

In sanitary installations, at least one sink per group must be accessible to people with reduced mobility and wheelchair users. This includes various fixtures such as mirrors, soap dispensers, hand dryers, coat hooks, and towel racks. These fixtures or parts of the furniture must be usable both while standing and sitting.
To meet these requirements, the height of these fixtures should be between 90 cm and 1.30 m from the floor. For wheelchair users, there should be a clear space of 70 cm under the sink, a width of 60 cm (between any potential legs of the sink unit), with the top of the sink no higher than 85 cm (resulting in a maximum sink height of 15 cm), and a depth of 30 cm to provide sufficient space for the wheelchair and legs under the sink.

The LAGOON circular sink with its white synthetic marble basin Ø113 cm and 13 cm height, combined with the conical stainless steel pedestal, has the top of the basin positioned 83 cm above the floor, meeting accessibility standards for public buildings.

- Timed faucets and pre-mounted pipes with tested sealing.
Faucet maintenance is facilitated with front-mounted stainless steel F1/2” connectors.
Flow duration is 15 seconds (± 5 seconds depending on pressure), with a flow rate of 3 LPM (adjustable in 4 positions without public access).
- Stainless steel pedestal with access panel for water supply and drainage connections.
- Zinc-plated anchor screws. Three sealing gaskets: with the floor, between the pedestal, base, and basin.
- Water supply with M1/2’’ shut-off valve and drainage with 2’’ (Ø 50 mm) trap.

OPTIONS :

• Integrated push-button soap dispensers with a 6L reservoir, ref. ...-S
• Integrated thermostatic pre-mixer, ref. ...-TH
• Stainless steel tube for hiding water supply from above (water inlet through the ceiling), ref. INT-CA2
• Colored base and/or top
• Other faucet options: touch-free, manual, mixers, etc.

• The various faucet options available upon request:

Push-button faucet with front-mounted disassembly M3P (included)	Soft push-button faucet M3DS	Simple ceramic faucet, 1/2 turn M2	Touch-free electronic faucet M9

• Soap dispensers available upon request (2 to 4 dispensers) :

Push-button soap dispensers with a 6L tank, ref. INT-SMR	Push-button soap dispensers with 800ml soap cartridges integrated into the sink head, ref. INT-SM.	Liquid soap dispenser to be mounted above the LAGOON sink head, even for later installation, ref. INT-SP.

Soap filling system: For ref. INT-SMR, a chrome cap is integrated into the sink head for top filling of the 6L soap tank.

• Optional stainless steel tray for soap or nail brushes, mounted on the column below the sink head, ref. INT-ST.

• for ref. INT-SM and INT-SP :
  Soap cartridges ref. INT-AL-HL: Box of 12 x 800ml liquid soap pouches. Universal, mild, and nourishing soap for the skin. Leak-proof connection to ensure 100% use of the contents. Good viscosity: prevents clogging of the soap system. Suitable for public restrooms, schools, sports and leisure facilities, light industry, etc.
  Powerful soap cartridges ref. INT-AL-HDL: Box of 12 x 800ml liquid soap pouches. Mild on the skin and deep cleaning. Suitable for heavy industry, garages, workshops, etc. Refreshing fragrance.

• Ref. INT-DS42 : Support for 3 hand towel dispensers on the sink head (mirror optional).
  Incompatible with soap dispensing systems that have 800ml cartridges integrated into the sink head (ref. INT-SM).
