Urinal through on foot in stainless steel
simple or in serial composition, cornered, custom made...

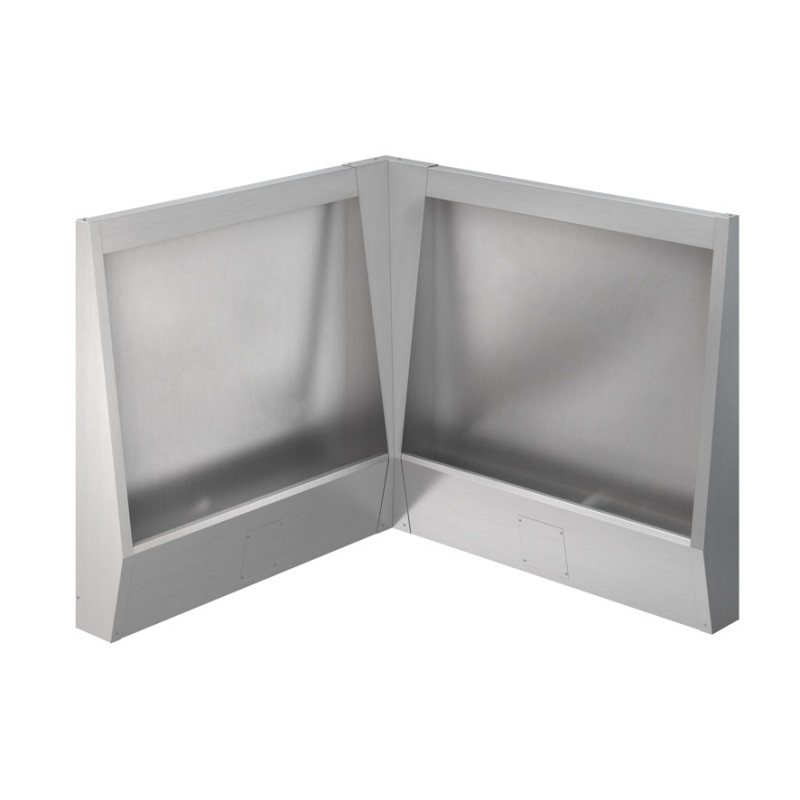

Urinal stall stainless steel recessed modular for serial installation, in L, in U, custom made...
- Specially made for a simplified maintenance, with a large modularity depending on a desired configuration.
- Central water inlet ½’’. Drainage by central plug 1 1/2" (ø 40 mm).
- Complete rinse by ramp perforated stainless steel, water wall effect = plumbing connexions accessible and removable rinse.
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.2 mm
- Finish
- Brushed
- Water inlet
- 1/2"
- Evacuation
- Ø 40 mm

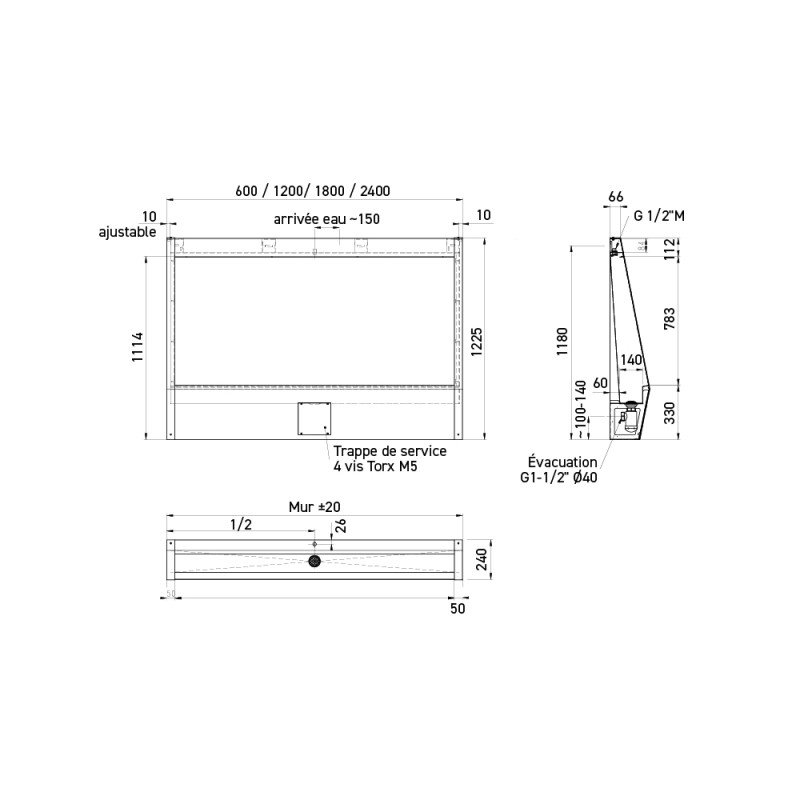

- Dimensions
- W600 x D240 x H1225 mm
W1200 x D240 x H1225 mm
W1800 x D240 x H1225 mm
W2400 x D240 x H1225 mm - Waste connection
- 1 1/2"
- Outlet details
- 1 1/2" Ø 40 mm (trap included)
- Connection gender
- Male
Urinal stall stainless steel recessed modular for serial installation, in L, in U, custom made...
- Specially made for a simplified maintenance, with a large modularity depending on a desired configuration.
- Central water inlet ½’’. Drainage by central plug 1 1/2" (ø 40 mm).
- Complete rinse by ramp perforated stainless steel, water wall effect = plumbing connexions accessible and removable rinse.
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.2 mm
- Finish
- Brushed
- Water inlet
- 1/2"
- Evacuation
- Ø 40 mm
- Dimensions
- W600 x D240 x H1225 mm
W1200 x D240 x H1225 mm
W1800 x D240 x H1225 mm
W2400 x D240 x H1225 mm - Waste connection
- 1 1/2"
- Outlet details
- 1 1/2" Ø 40 mm (trap included)
- Connection gender
- Male
