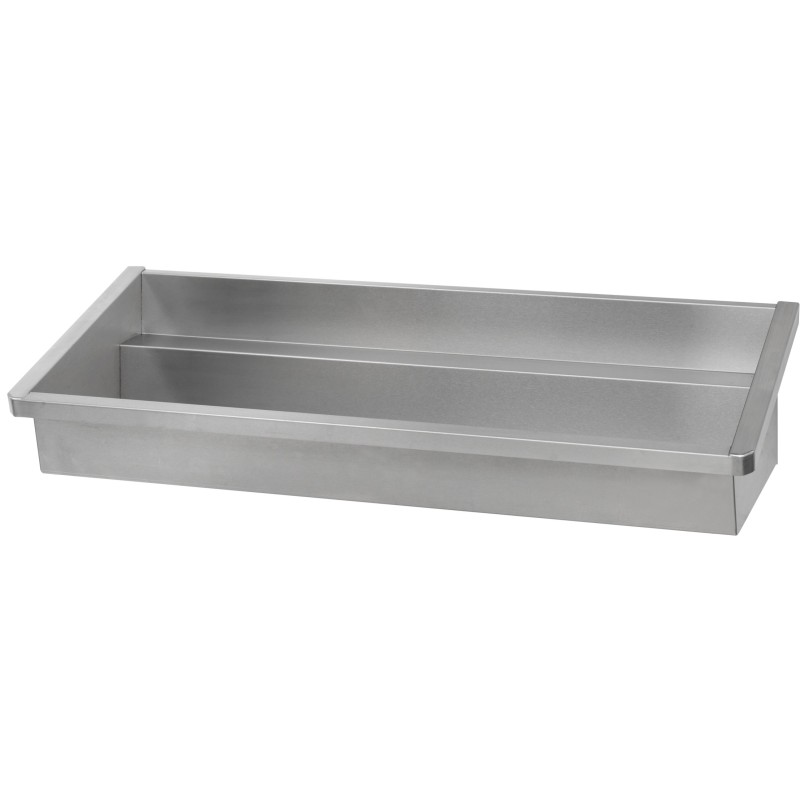

Industrial stainless steel washbasin INTER-9
wall-mounted, with a tap deck and a splashback protecting the wall
Wall-mounted INTER-9 stainless steel wash trough with tap deck and rear upstand, for 1 to 5 users.
Available made to measure, and easily installed in a row.
The flat bottom allows a bucket to be placed in the basin.
Accessible to people with reduced mobility from a width of 100 cm.
Designed for public or industrial washrooms that require strict hygiene and high strength.
- Robot-welded with no grooves in the corners, preventing bacterial growth.
- No dust-collecting rim under the basin, for hygiene.
- Built-in 75 mm tap deck and H103 mm splashback protecting the wall from water splashes and dirt.
- Also suitable for wall-mounted taps.
 |
| Flexible length from 600 to 3000 mm |
- Quick and easy installation. Built-in 4-point fixing system for tightening the basin against the wall.
- Complies with standard EN14296 on the load resistance of sanitary appliances.
|
Higher upfront price than ceramic, but with a built-in splashback and brackets included; one person is enough to install it (light weight, built-in brackets, fixing holes easy to line up) and there is no need to build pipework into the wall… |
 |
 |
 |
 |
 |
 |
| Rounded corners to prevent injury on impact | Pressed waste with no dirt-trapping lip or screws, for hygiene and easy cleaning | High-quality welding. Internal angles greater than 90° | Enough room for a bucket | Optional lift-up stainless steel grid, used as a rest or drainer | Dimensions |
|
Stainless steels owe their name to their chromium content, which gives them remarkable resistance to corrosion and wear (a “passive” surface film). Type 441 chromium steel is no exception, and is used successfully in demanding applications such as sinks, washing machine drums, exhaust systems… |
- Material
- AISI 430/441 stainless steel
- Detailed composition
- Sides 1.5 mm - tank 0.8 mm
- Stainless steel thickness
- 0.8 mm
1.5 mm - Finish
- Brushed
- Evacuation
- Ø 40 mm
- Waste connection
- 1 1/2"
- Fixing
- Wall mounted
- Dimensions
- W600 x D395 x H230 mm
W1000 x D395 x H230 mm
W1200 x D395 x H230 mm
W1400 x D395 x H230 mm
W1500 x D395 x H230 mm
W1800 x D395 x H230 mm
W2000 x D395 x H230 mm
W2100 x D395 x H230 mm
W2400 x D395 x H230 mm
W2800 x D395 x H230 mm
W3000 x D395 x H230 mm
