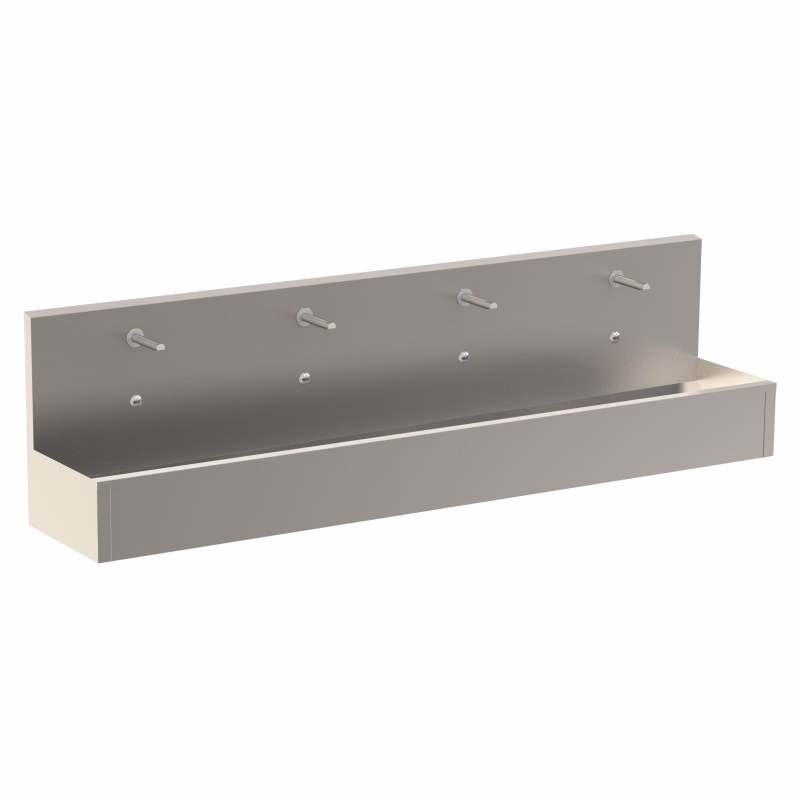

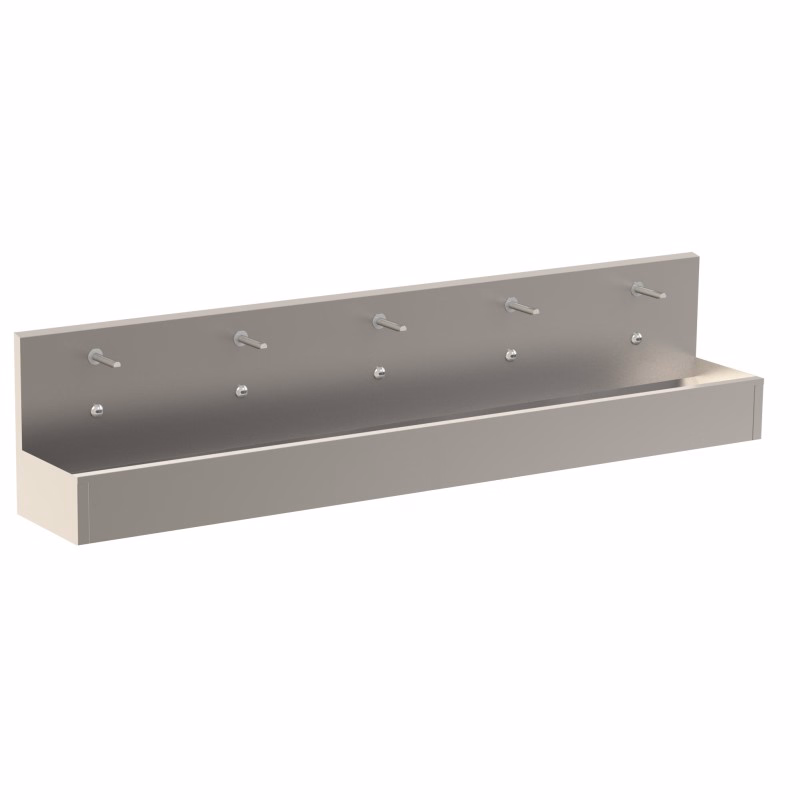

Wall-mounted wash trough, 2 to 5 stations, with integrated sensor taps
Quick and easy installation
Wall-mounted stainless steel wash trough with integrated wall-mounted sensor taps (cold or pre-mixed water).
STANDARD operating mode = water flows as long as the hands are within the sensor range
or ON/OFF operating mode = water starts when a hand is brought within 5-10 cm of the sensor and stops when a hand is brought close to it again
- Infrared sensors with wall-mounted stainless steel spouts, 1/2'' solenoid valves, connection hoses
- 2 angle stop valves with non-return valves (pre-mixed water) and filters; waste and trap included.
- External 230/24V transformer, sold separately.
- SLD03 remote control to adjust the settings (sensor range, run time, on/off, periodic flushing).
OPTIONS:
- SLD03 settings remote control
- Transformer box to power up to 5 taps (ref. SPZ02)
- Transformer box to power up to 9 taps (ref. SPZ01)
- Self-closing push-button tapware, or no taps.
- Built-in thermostatic pre-mixing valve.
- Closed lower apron concealing the trap
- Power supply
- 230/24V transformer
- Safety shut-off
- After 5 minutes without interruption (adjustable)
- Material
- AISI 304 stainless steel
- Detailed composition
- Sides 1.5 mm - tank 1.2 mm
- Stainless steel thickness
- 1.2 mm
1.5 mm - Finish
- Brushed
- Tap sensor
- Self-adjusting infrared
- Water supply
- Single supply
- Water inlet
- 1/2"
- Evacuation
- Ø 32 mm
- Pressure
- 1-6 bars
- Max. eligible temperature
- 70°C
- Flow rate
- 6 LPM (3.8 or 1.9 LPM upon request)
- Fixing
- Wall mounted
- Dimensions
- W1250 x D480 x H670 mm
W1900 x D480 x H670 mm
W2500 x D480 x H670 mm
W3000 x D480 x H670 mm - Warranty
- Electronics 5 years
- Waste connection
- 1 1/4"
- Water supply details
- Single supply: cold water or pre-mixed water (mixed upstream)
Wall-mounted stainless steel wash trough with integrated wall-mounted sensor taps (cold or pre-mixed water).
STANDARD operating mode = water flows as long as the hands are within the sensor range
or ON/OFF operating mode = water starts when a hand is brought within 5-10 cm of the sensor and stops when a hand is brought close to it again
- Infrared sensors with wall-mounted stainless steel spouts, 1/2'' solenoid valves, connection hoses
- 2 angle stop valves with non-return valves (pre-mixed water) and filters; waste and trap included.
- External 230/24V transformer, sold separately.
- SLD03 remote control to adjust the settings (sensor range, run time, on/off, periodic flushing).
OPTIONS:
- SLD03 settings remote control
- Transformer box to power up to 5 taps (ref. SPZ02)
- Transformer box to power up to 9 taps (ref. SPZ01)
- Self-closing push-button tapware, or no taps.
- Built-in thermostatic pre-mixing valve.
- Closed lower apron concealing the trap
- Power supply
- 230/24V transformer
- Safety shut-off
- After 5 minutes without interruption (adjustable)
- Material
- AISI 304 stainless steel
- Detailed composition
- Sides 1.5 mm - tank 1.2 mm
- Stainless steel thickness
- 1.2 mm
1.5 mm - Finish
- Brushed
- Tap sensor
- Self-adjusting infrared
- Water supply
- Single supply
- Water inlet
- 1/2"
- Evacuation
- Ø 32 mm
- Pressure
- 1-6 bars
- Max. eligible temperature
- 70°C
- Flow rate
- 6 LPM (3.8 or 1.9 LPM upon request)
- Fixing
- Wall mounted
- Dimensions
- W1250 x D480 x H670 mm
W1900 x D480 x H670 mm
W2500 x D480 x H670 mm
W3000 x D480 x H670 mm - Warranty
- Electronics 5 years
- Waste connection
- 1 1/4"
- Water supply details
- Single supply: cold water or pre-mixed water (mixed upstream)
