Recessed self-closing vandal-resistant shower valve
Façade stainless steel thickness 3 mm
Technical sheet & documents
No technical sheet available for this reference. Request the sheet
Shower faucet recessed stainless steel with sensitive set-off Piezo inviolable
- Large usage: motor way stations, stadium, train stations and airports, commercial centres, prisons, schools, parks…
- Vandal-resistant, totally recessed with no mechanism surface in movement
- Front in stainless steel thickness 3 mm with security screws
- Water flow by simple Piezo button
- Adjustable settings by remote control SLD04

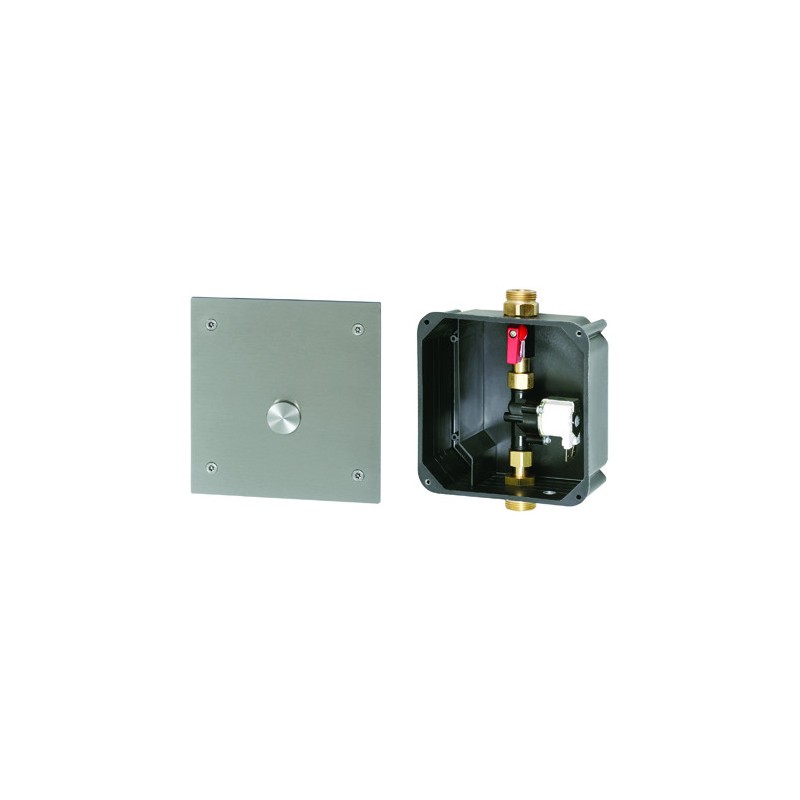

Mounting kit comprising vandal-resistant stainless steel façade with electronics integrated and piezo button, recessed box in plastic
with brass connexions, solenoid valve and stopcock, torx security screws (4)
- Operation
- Piezo sensor, with a simple touch
- Temporization
- Pre-set at 120 s, adjustable from 10 s to 5 mn. Or stops before the end by piezo button.
- Power supply
- External 230/24V transformer
- Consumption
- 7 W
- Hygienic rinse anti-legionella
- After 24 H of non-use (adjustable)
- Material
- AISI 304 stainless steel
- Detailed composition
- Front panel 3 mm
- Stainless steel thickness
- 3 mm
- Finish
- Brushed
- Stopcock
- Embedded (allows flow rate adjustment)
- Water inlet
- 3/4"
- Water inlet thread
- Male
- Water outlet
- M3/4" threaded
- Pressure
- 1-6 bars
- Flow rate
- 12 LPM.
- Fixing
- Wall recessed
- Operation settings
- Adjustable by SLD04 remote control: interval rinse, temporary off, interval rinse time
- Dimensions
- Recessed box W140 x D75 x H140 mm
Façade stainless steel W170 x H170 x Thickness. 3 mm - Warranty
- Electronics 5 years
Shower faucet recessed stainless steel with sensitive set-off Piezo inviolable
- Large usage: motor way stations, stadium, train stations and airports, commercial centres, prisons, schools, parks…
- Vandal-resistant, totally recessed with no mechanism surface in movement
- Front in stainless steel thickness 3 mm with security screws
- Water flow by simple Piezo button
- Adjustable settings by remote control SLD04
Mounting kit comprising vandal-resistant stainless steel façade with electronics integrated and piezo button, recessed box in plastic
with brass connexions, solenoid valve and stopcock, torx security screws (4)
- Operation
- Piezo sensor, with a simple touch
- Temporization
- Pre-set at 120 s, adjustable from 10 s to 5 mn. Or stops before the end by piezo button.
- Power supply
- External 230/24V transformer
- Consumption
- 7 W
- Hygienic rinse anti-legionella
- After 24 H of non-use (adjustable)
- Material
- AISI 304 stainless steel
- Detailed composition
- Front panel 3 mm
- Stainless steel thickness
- 3 mm
- Finish
- Brushed
- Stopcock
- Embedded (allows flow rate adjustment)
- Water inlet
- 3/4"
- Water inlet thread
- Male
- Water outlet
- M3/4" threaded
- Pressure
- 1-6 bars
- Flow rate
- 12 LPM.
- Fixing
- Wall recessed
- Operation settings
- Adjustable by SLD04 remote control: interval rinse, temporary off, interval rinse time
- Dimensions
- Recessed box W140 x D75 x H140 mm
Façade stainless steel W170 x H170 x Thickness. 3 mm - Warranty
- Electronics 5 years
