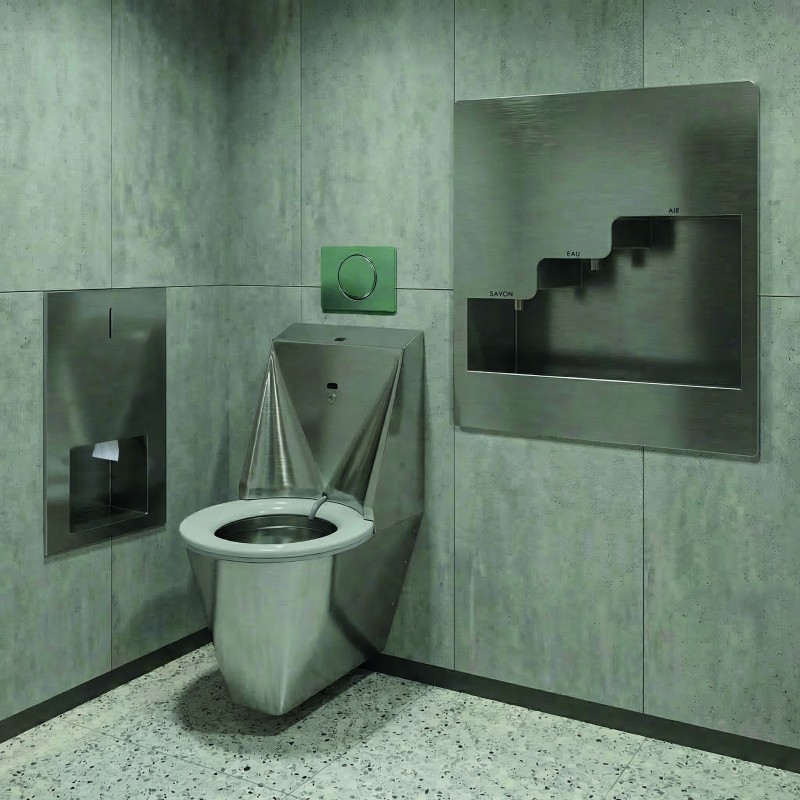

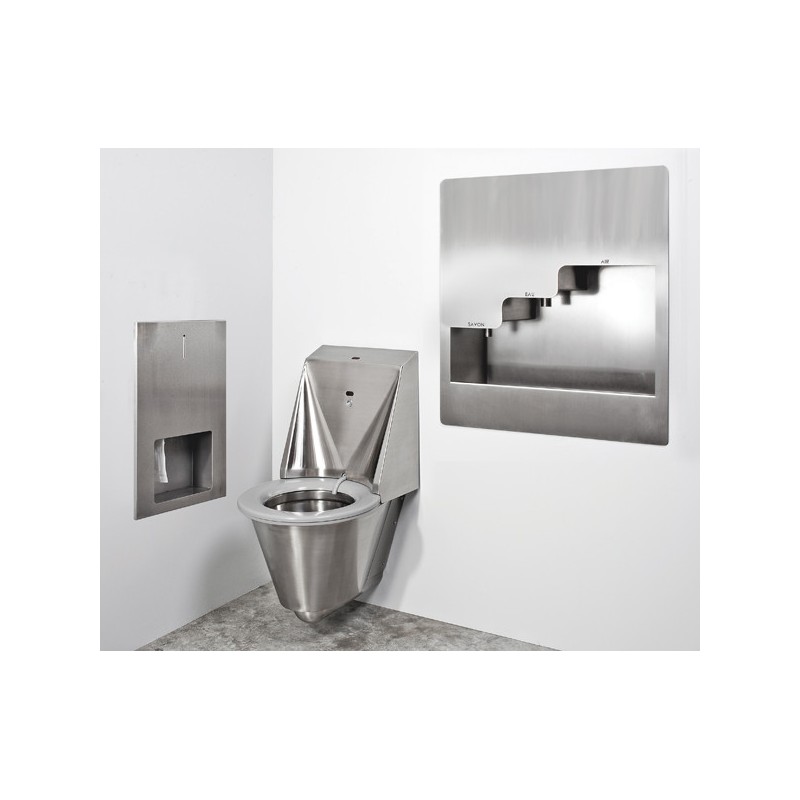

  • Miniature-0 Wall-mounted recessed handwashing all-in-one soap water air station LM-239
  • Miniature-1 Recessed vandal-proof automatic stainless steel handwashing station 3in1 touch-free soap, water and hand dryer LM-239

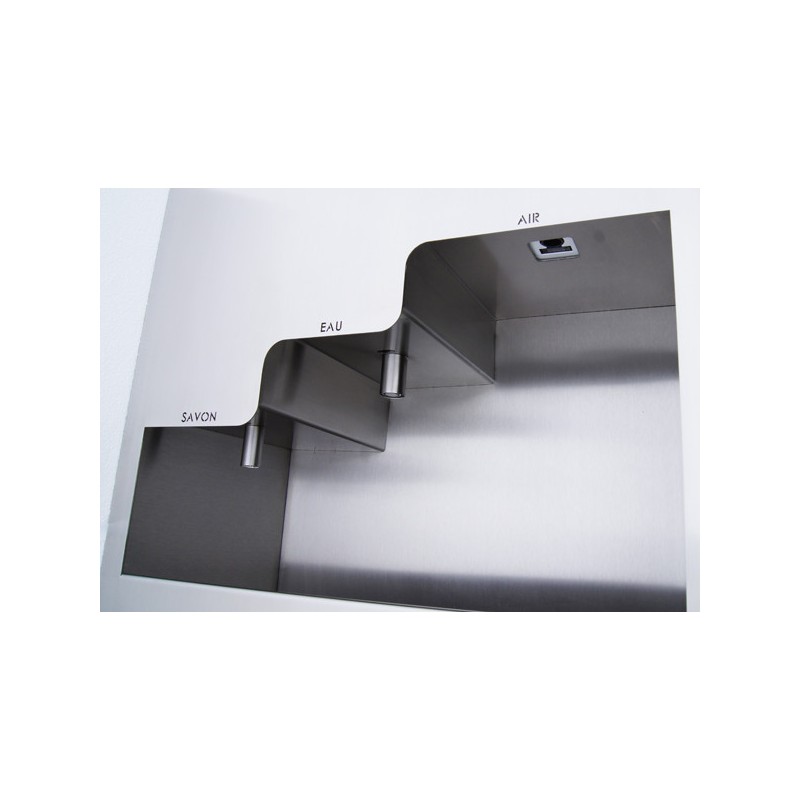

  • Miniature-2 Automatic soap dispenser, electronic faucet, and hand dryer body out of user reach LM-239

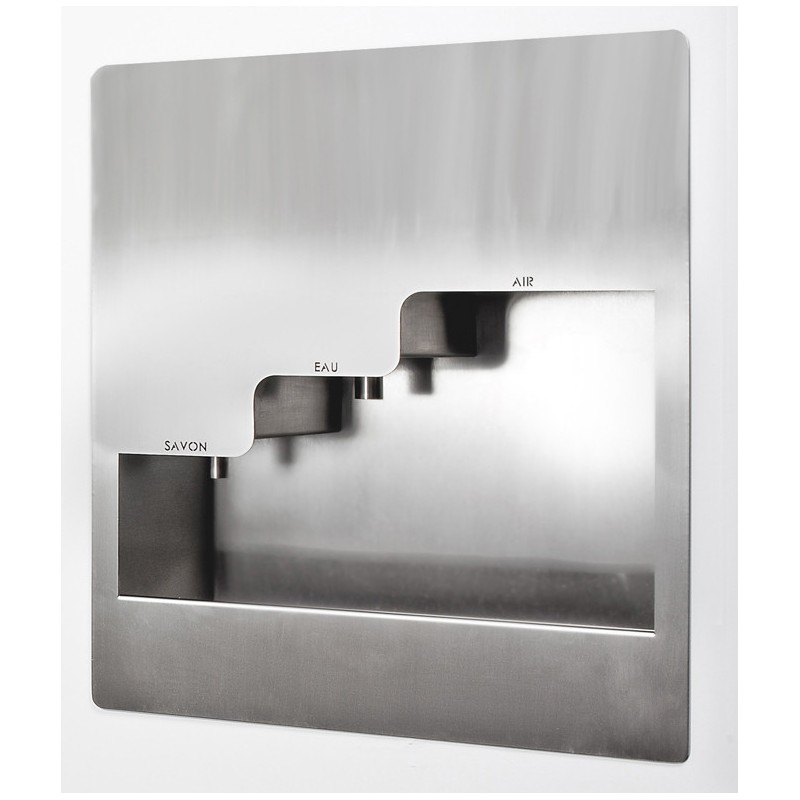

  • Miniature-3 Soap, Water, Air handwashing station for sites exposed to vandalism LM-239

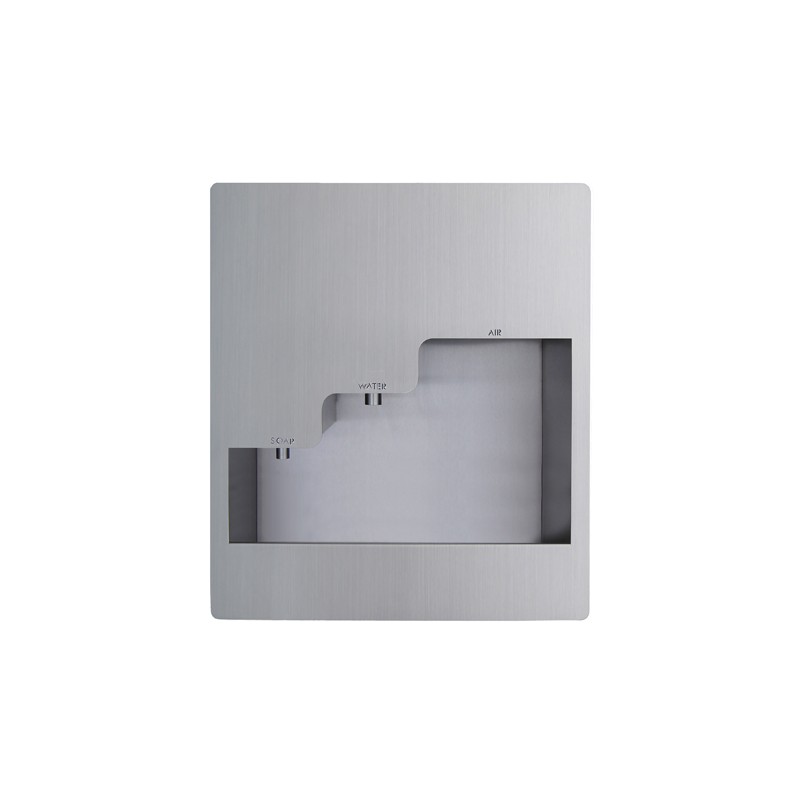

Recessed 3 in 1 automatic stainless steel handwashing station

automatic touch-free handwashing station: soap, water and air


€2,455.00 Net Price

Tax excluded

3 in 1 SOAP-WATER-AIR compact stainless steel recessed handwashing station for intensive use in public places.
Robust, compact and functional.

VANDAL-PROOF: 2 mm thick AISI 304 stainless steel

HYGIENE: touch-free, by infrared detection, to avoid germs from spreading.

SAFETY: the user has no access to the fixtures an fittings, water supply and evacuation in the technical gallery.

Stainless-steel-3-in-1-hand-washMaximizing utility in a minimal space.

Front installation into the wall cutout, secured through the technical duct using two metal angles for drawer slides. This ensures both ease and stability during installation on walls with a thickness ranging from 15 to 240 mm.

Maintenance and soap refill only through mechanical room.

3 year limited guarantee



Registered design

Soap = vertical spout with infrared detection. Operates via a peristaltic pump for liquid soap, with refillable 1L plastic bottle (larger capacity option). Delivers an exact soap dose. Automatic drip-proof dosing system.

Water = vertical spout with infrared self-adjustable detection for cold or pre-mixed water. Consistent 6 LPM flow (customizable upon request). Safety stop mechanism after 90 seconds of uninterrupted flow. 0.5-8 bar – max 70°C.

230/12V transformer for water and soap.

Air = 1000W high-speed energy-saving hand dryer with infrared detection. Adjustable air flow and sound volume. Heated or ambient air switch. Dries within less than 10 seconds.

recessed-3-in-1-washbasin-integrated-mirrorStainless steel integrated mirror option

Self-adjusting infrared
Voltage supply
230 V 50/60Hz. 0.84 – 1 KW
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
2 mm facade
Wall-mounted, recessed (technical duct access)
Rough wall opening
W610 x H740 mm
W660 x D300 x H760 mm
3 years (soap dispenser 2 years)
