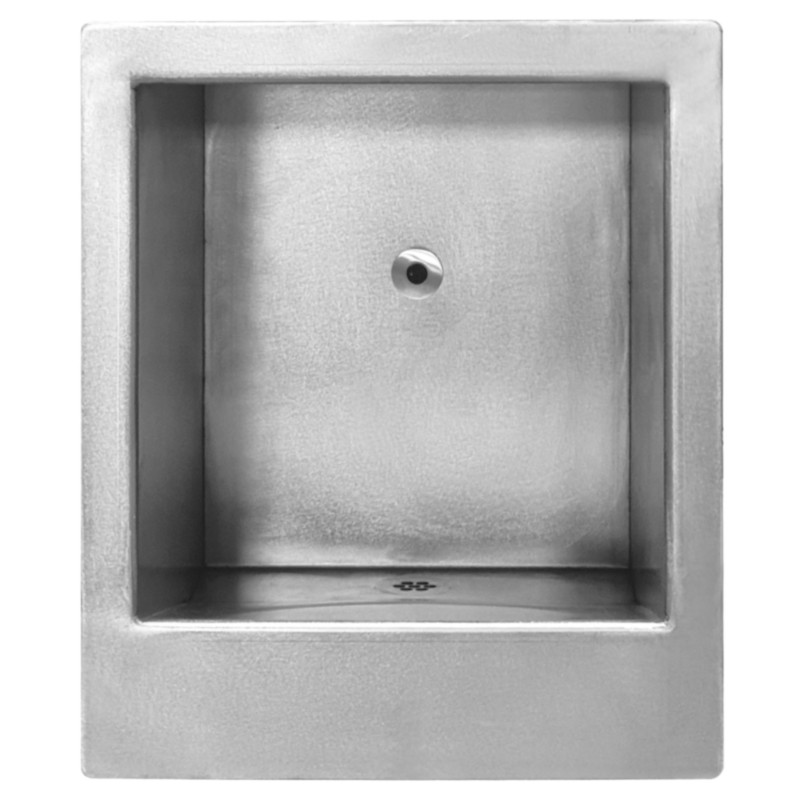

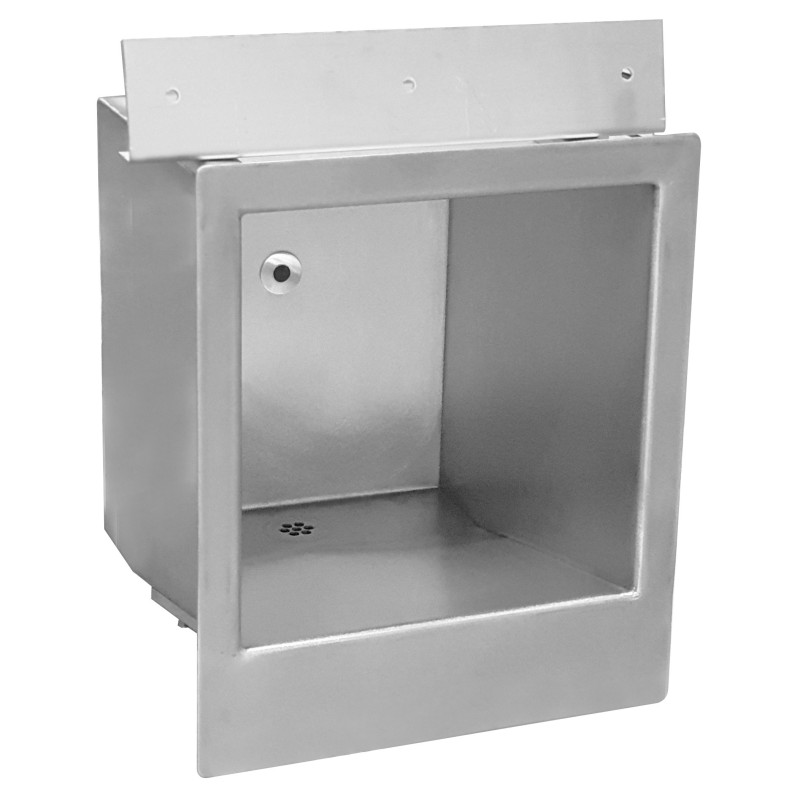

Wash basin recessed cell in stainless steel
electronic or manual control...
Technical sheet & documents
No technical sheet available for this reference. Request the sheet
Cell hand wash in stainless steel quality AISI 304 thickness 2 mm.
- Concealed supply and evacuation, fixation in technical room.
- The user has no access to fixations or plumbing. No hurtful edges.
- Installation by the front, and fixation by technical room with the help of 2 horizontal edges
to ensure easiness and stability of the installation on thick wall 10 to 16 cm.
- Centra evacuation on the bottom of hand wash by threaded tube in stainless steel M1 1/2".
- Water inlet from above 3/8".
- Faucets not included.
- Sensor
- Infrared
- Power supply
- 230/9V transformer
- Solenoid valve
- External M1/2'' with filter
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 2 mm
- Finish
- Brushed
- Water inlet
- 1/2"
- Water inlet thread
- Male
- Evacuation
- Ø 40 mm
- Waste connection
- 1 1/2"
- Pressure
- 0.3 - 8 bars
- Max. eligible temperature
- 70°C
- Fixing
- Wall recessed
- Mounting details
- Technical duct accessible
- Dimensions
- W354 x D352 x H420 mm
- Warranty
- 10 years
- Warranty details
- Electronics 3 years
Cell hand wash in stainless steel quality AISI 304 thickness 2 mm.
- Concealed supply and evacuation, fixation in technical room.
- The user has no access to fixations or plumbing. No hurtful edges.
- Installation by the front, and fixation by technical room with the help of 2 horizontal edges
to ensure easiness and stability of the installation on thick wall 10 to 16 cm.
- Centra evacuation on the bottom of hand wash by threaded tube in stainless steel M1 1/2".
- Water inlet from above 3/8".
- Faucets not included.
- Sensor
- Infrared
- Power supply
- 230/9V transformer
- Solenoid valve
- External M1/2'' with filter
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 2 mm
- Finish
- Brushed
- Water inlet
- 1/2"
- Water inlet thread
- Male
- Evacuation
- Ø 40 mm
- Waste connection
- 1 1/2"
- Pressure
- 0.3 - 8 bars
- Max. eligible temperature
- 70°C
- Fixing
- Wall recessed
- Mounting details
- Technical duct accessible
- Dimensions
- W354 x D352 x H420 mm
- Warranty
- 10 years
- Warranty details
- Electronics 3 years
