Photo 45L towel dispenser and bin combo unit with customizable features BO-39619
  • Miniature-0 45L towel dispenser and bin combo unit with customizable features BO-39619
  • Miniature-1  BO-39619

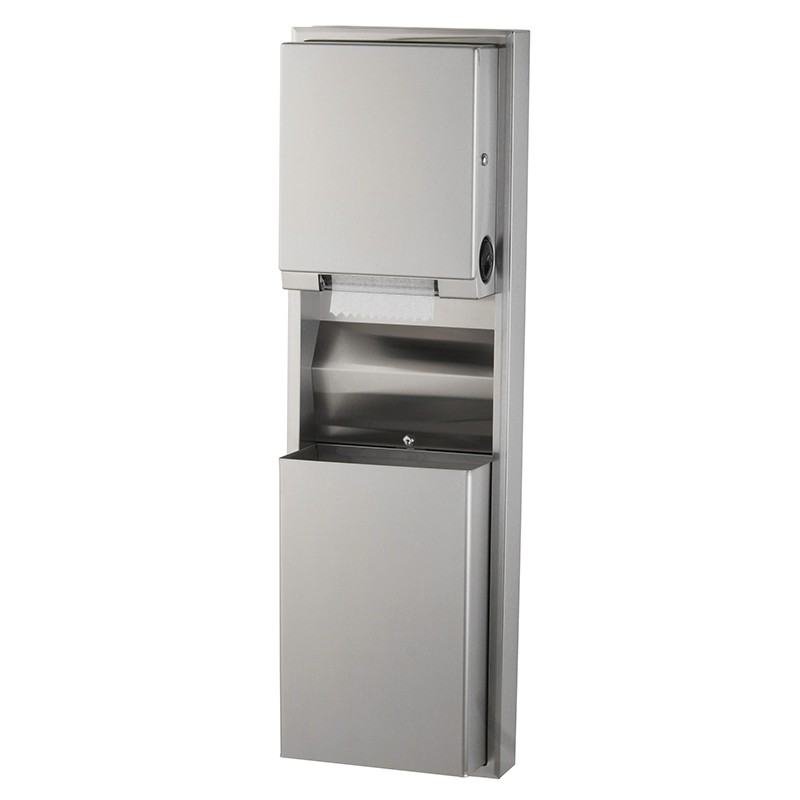

Wall-mounted convertible stainless steel unit with paper towel dispenser and 45 L bin

Single sheet dispensing, with a side handle (to advance the paper if necessary)

BO-39619

€1,348.00 excl. VAT

Tax excluded
Quantity

Wall-mounted stainless steel high-capacity convertible unit consisting of a paper towel dispenser and a bin (with interchangeable modules).

The dispenser features a rounded and hemmed opening to dispense paper towels without tearing them.
Keyed lock closure.
Large waste bin secured within the recessed housing by a keyed lock, removable for maintenance.
Upper edges are hemmed for safe handling.
Complete solution with a contemporary design that saves space, simplifies maintenance, and provides an optimal user experience.

AISI 304 stainless steel brushed finish, 0.8 thickness.
Beveled pressed frame in a single piece, featuring corners without visible joints.
Fully welded flush-mounting box.
Dispenser for universal non-perforated roll Ø 205 mm, width 205 mm, length 244 m, and core Ø 38 to 51 mm.
Dispenses one 305 mm long sheet at a time.
Reserve for end-of-roll use; automatic transfer to a new roll from the end of the roll up to Ø 90 mm to prevent supply disruption.
Side handle to advance the paper if necessary and to initiate the reload
One-piece 0.9 mm thick recessed door secured with a full-length stainless steel piano hinge and equipped with a keyed lock.
Removable 45.5 L waste bin with key.

Dimensions: W437 x D230 x H1422 mm (including 100 mm recess)
Wall cutout: W403 x D102 x H1387 mm

CE. 2 year warranty.

OPTIONS :

  • BO-3994-134: RAPIDCOLLECT: concealed bag holder for easy waste bag installation and removal.RAPIDCOLLECT pour faciliter l'installation et le retrait des sacs poubelles
  • BO-3961-50: Universal paper towel roll dispenser with automatic cutting
    Distributeur automatique d'essuie-mains
  • BO-3944-52: Single sheet paper dispenser
  • BO-366-60: 27.2 L waste bin
  • BO-368-60: 68 L waste bin
Paper
Non perforated roll max Ø 205 mm
width 205 mm, length 244 m, and core Ø38 to 51 mm
Capacity
45,5 L
Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
0,8 mm
Finish
Brushed
Dimensions
W437 x D230 x H1422 mm

3d_rotation BO-39619 (dwg)
