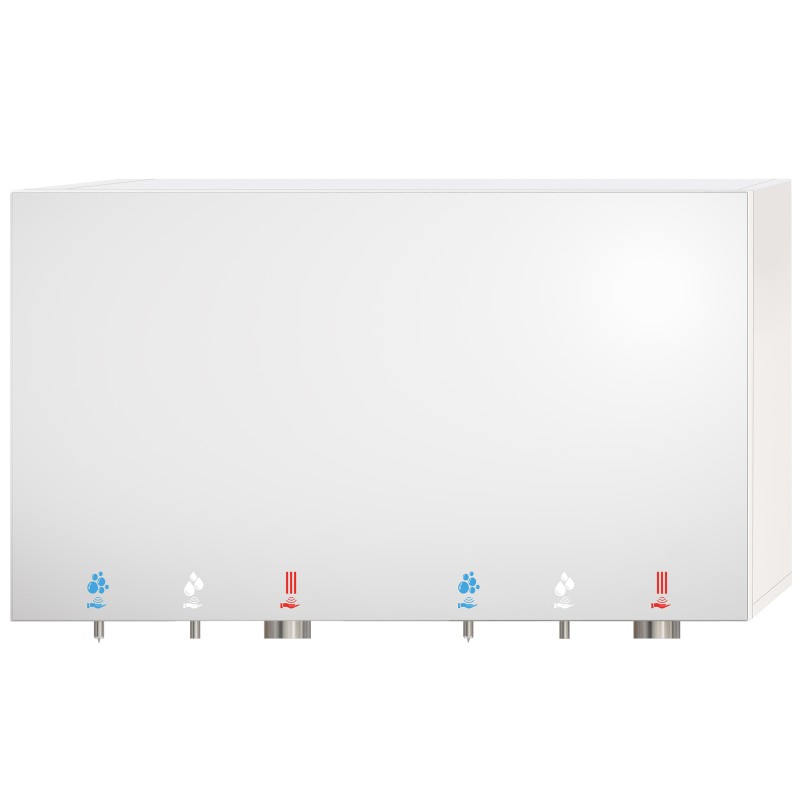

Photo Mirror modul with double station and integrated soap, water and air features RES-8502

Double HYFLO 4 in 1 "mirror-soap-water-air" cabinet, width 1200 mm

All in one and ready to install HYFLO double mirror cabinet, width 1200 mm, with integrated soap dispensers, automatic taps, and hand dryers

Ref. : RES-8502

€3,970.00 excl. VAT

Tax excluded

Soap version

Option led strip

Option fixed impost Height 1000 mm

Quantity

Ask a question

Double unit mirror cabinets, ready to be installed above a sink including liquid or foam soap dispensers, electronic water faucets with thermostatic pre-mixers, and concealed high-speed hand dryers. These functions are activated by touch free detection. LED pictograms.

Minimalist design, easy and pleasurable to use.

Simplified service = saves on time, soap, water, space and money!

Hygiene: all functions are automatically activated by placing your hands in the sensor zone and then stops once your hands leave the zone.
A complete hand washing cycle that allows you to leave the premises in a perfect condition (avoids dirty taps, soap marks, wet floors...).

Simplified installation: the unit is easy to mount on the wall thanks to its stainless steel suspension rail. It requires only a single power supply line by unit, and the water lines simply connect to the mixing valve, for a quick and ready-to-use installation.

An easy access 7L soap tank, for filling (foam or liquid soap).

Easy soap service:
- without any lid to unscrew, simple flap
- without any pipes, avoids soap from leaking
- large bottle neck, filled without a funnel
- large capacity 7L, reduces interventions

Components assembled on a heavy duty rugged stainless steel plate 1,2 mm thickness.

Module intégré derrière miroir savon eau et air

Easy maintenance: all components (solenoid valve, pump, sensors, transformer, stopcock, mixing valve…) easy to access for a quick and easy service.

LED icons (colours of choice between blue, white, red or green) with visible vertical stainless steel spouts and nozzles to indicate where to place your hands.

Lock and key (automatic lock).

CHARACTERISTICS

Cabinet made out of 19 mm thick white water-resistant melamine panel, 1 mm thick white PVC-coated edges,
cabinet base and door in rot-proof 19 mm white komacel. 6 mm thick mirror with backing film.
Lift-up door with 4 stay supports and 4 concealed hinges.
Components mounted on a robust 1.2 mm thick stainless steel plate. Key lock and automatic closure.
Illuminated pictograms (color selection: blue, white, red, or green), french/english inscription, logo for hand detection from below,
visible vertical stainless steel spouts and nozzles to indicate hand placement in public spaces and to facilitate use.
Soap dispensers operate with peristaltic pump for precise soap dosage. Close automatically without dripping.
7L soap tank (x2) easily accessible for filling, liquid or foam soap.
Liquid soap viscosity 100-3800 cPs, foam soap viscosity 0-100 cPs. PH 5.5 to 8.5.
F3/8” thermostatic mixing valves for tempered water (without on demand).
Vertical faucets with self-adjusting infrared detection, 6 LPM flow rate (1,9 LPM on demand).
Security stop after 90 seconds without interruption. Water pressure: 0.5-8 bars. Periodic hygiene rinse to prevent Legionnaires’ disease.
High speed hand dryer (x2) 920W nominal ouput (mini. setting 350W). Hot/ambiant air switch. White finished steel cover.
Hands dried in 9 seconds (according to UL PCR hand dryer standard). Adjustable airflow and sound level (67.4-71.2 dB at 1m).
CE. 3-year warranty.
Dimensions: W1200 x D256 x H700 mm.
This concept is flexible in terms of dimensions, finishes and integrated components, please contact us.

OPTIONS:

Limited flow rate 1,9 LPM.
Remote control RES-30 settings for water tap and soap dispenser
Hand dryer with HEPA filter and brushless motor
Visual low soap level indicator
Magnetic lock (without key turn)
Mirror with vertical white LED strips on both sides (Make Up) with or without motion sensor
Antifog mirror (shower exit installation)
Paper towel dispenser
Choice of mirror cabinet components
Top mirror casing H300 mm for total mirror unit height 1000mm (Ref. MH)
Cabinet color finish
LED strip on top and/or bottom of the cabinet, with or without motion sensor
White LEDs only

Module miroir HYFLO 5 en 1 pictogrammes leds blanches sans texte

Module miroir HYFLO 5 en 1 pictogrammes leds blanches

Material: 19mm white hydro melamine board with 1mm black PVC veneer edges
Supporting plate for componants in stainless steel AISI304 thickness 1,2 mm
Underside and door in white 19 mm Komacel
Mirror: 6 mm thick clear mirror with shatterproof film backing, polished edges
Electrical supply: 230 V 50/60Hz. 0.92 KW
Electrical insulation: Class I
Water supply: Cold and hot water
Water inlet: F 3/8''
Fixation: Wall-mounted on stainless steel rails
Dimensions: W1200 x H800 x D256 mm
Warranty: 3 years
