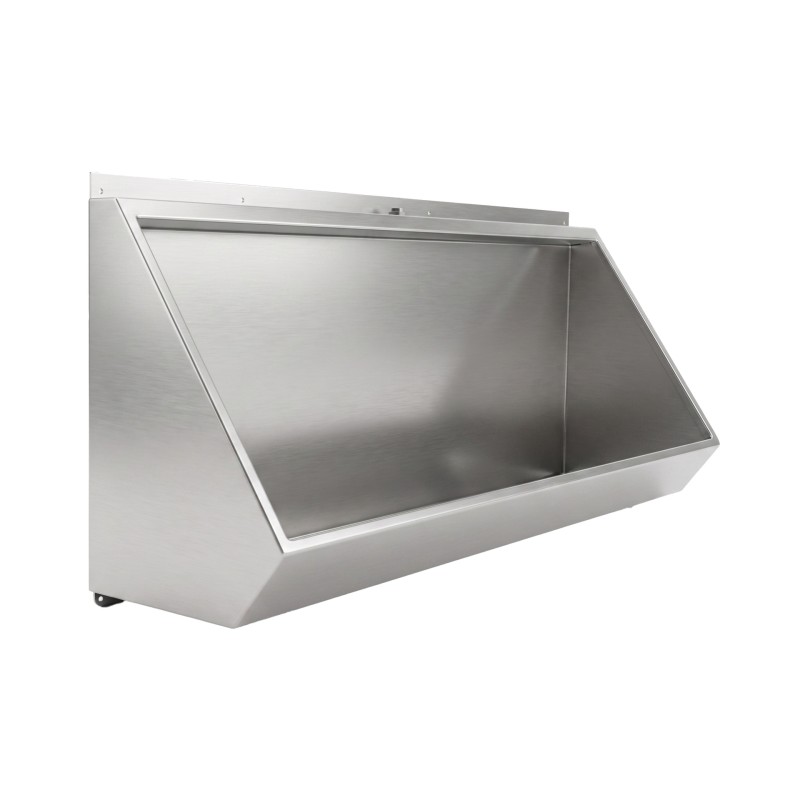

Wall-mounted stainless steel communal trough urinal

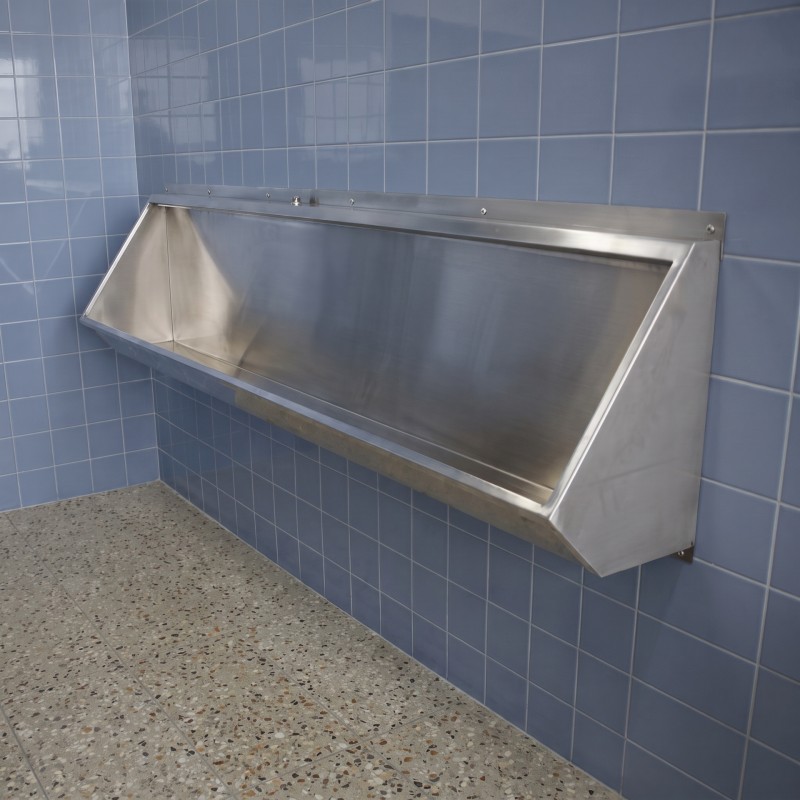

particularly robust for nightclubs, bars, stadiums, highway rest areas, schools...

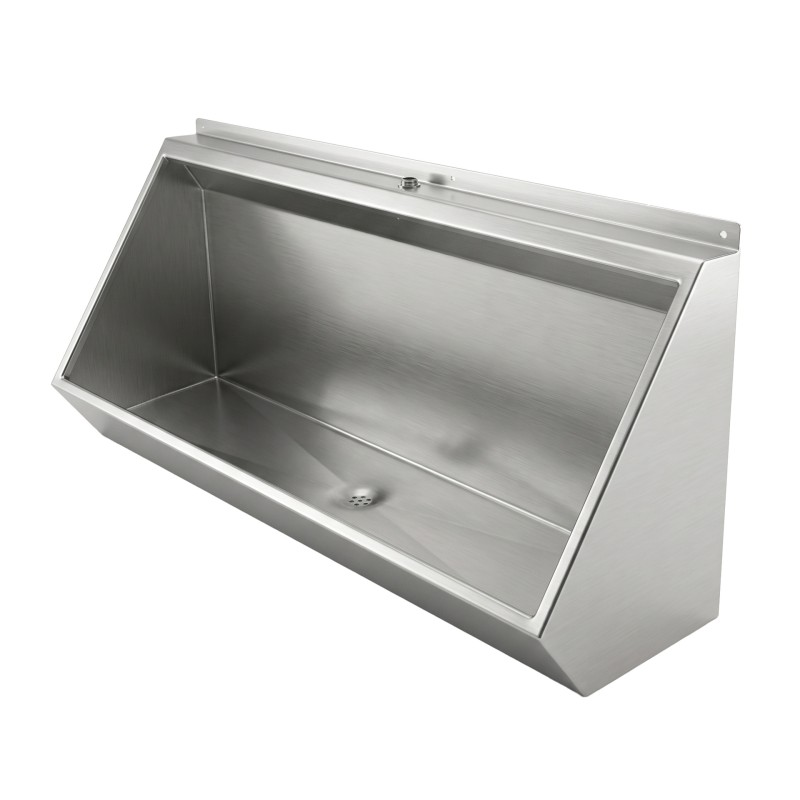

URCO wall-mounted stainless steel communal urinal, for 2,3 or 4 users.
- ½" threaded vertical water supply inlet (or horizontal concealed upon demand), 1 ½" (Ø 40 mm) S-trap.
- Flow slope towards the grate.

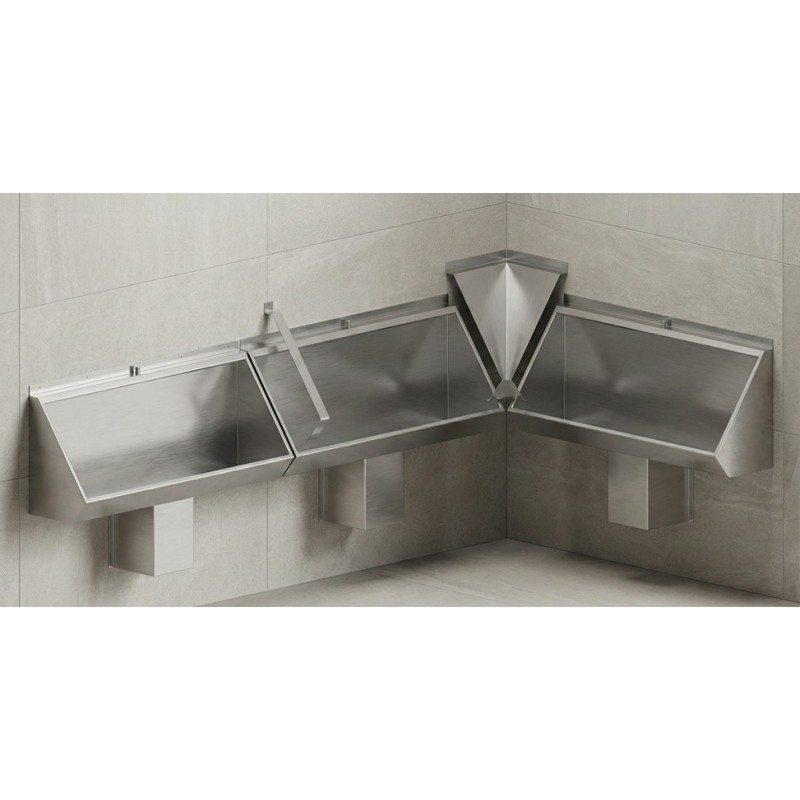

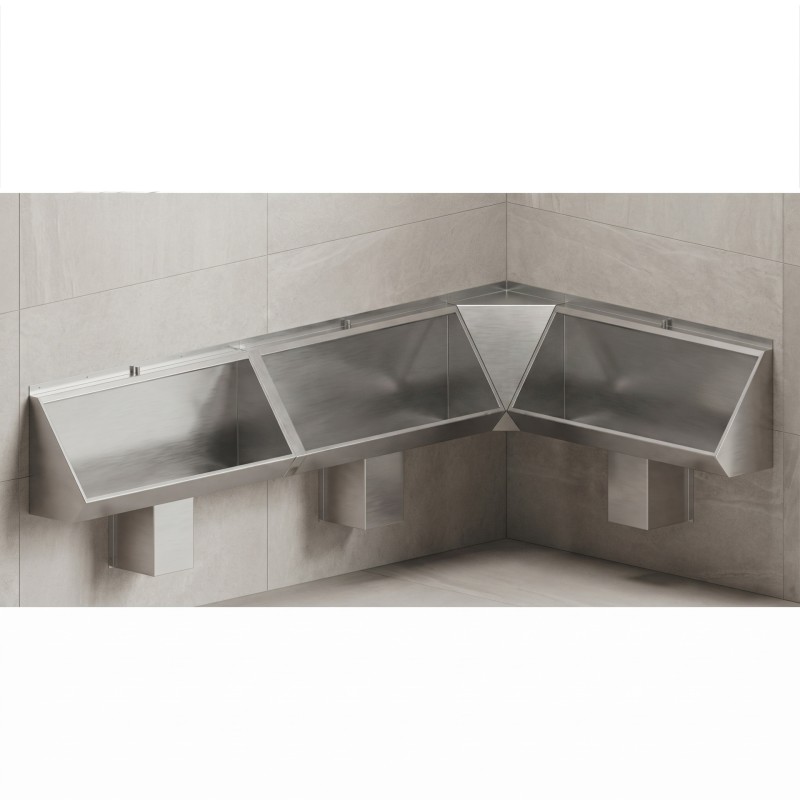

- Optional stainless steel separator for user privacy.
- Recommended for high-traffic areas and installations particularly exposed to vandalism, where ease of maintenance and durability are prioritized.
- The use of stainless steel ensures better hygiene: Bacteriostatic properties limit bacterial growth, and its smooth surface prevents impurities from adhering.
- Easy installation
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.5 mm
- Finish
- Brushed
- Water inlet
- 1/2"
- Evacuation
- Ø 40 mm
- Fixing
- Wall mounted

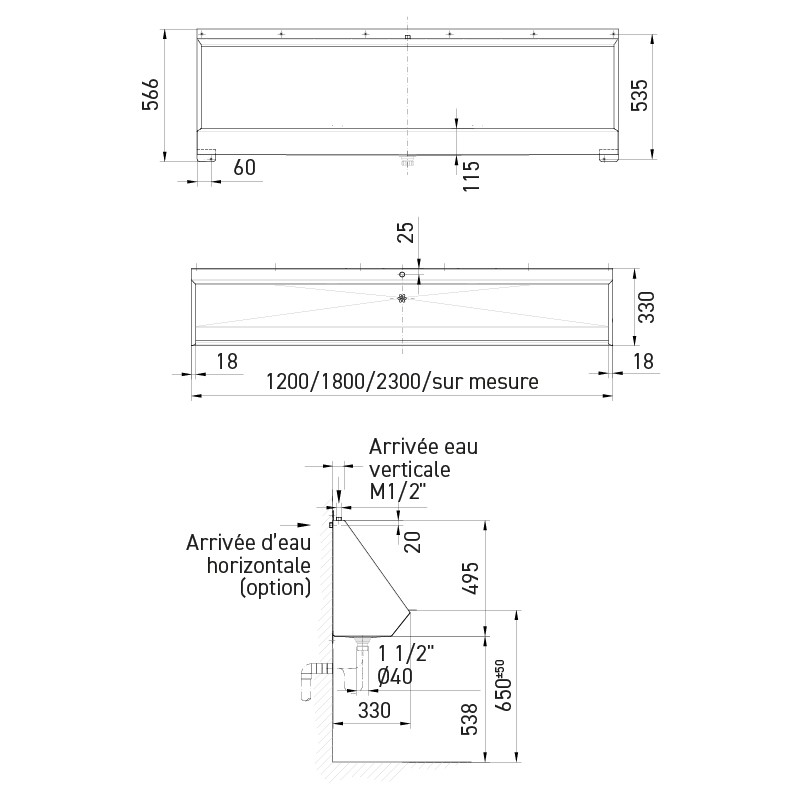

- Dimensions
- W1200 x D330 x H566 mm
W1800 x D330 x H566 mm
W2300 x D330 x H566 mm - Waste connection
- 1 1/2"
- Outlet details
- 1 1/2" Ø 40 mm (trap included)
- Connection gender
- Male
- Water inlet details
- Vertical M1/2" threaded
URCO wall-mounted stainless steel communal urinal, for 2,3 or 4 users.
- ½" threaded vertical water supply inlet (or horizontal concealed upon demand), 1 ½" (Ø 40 mm) S-trap.
- Flow slope towards the grate.
- Optional stainless steel separator for user privacy.
- Recommended for high-traffic areas and installations particularly exposed to vandalism, where ease of maintenance and durability are prioritized.
- The use of stainless steel ensures better hygiene: Bacteriostatic properties limit bacterial growth, and its smooth surface prevents impurities from adhering.
- Easy installation
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.5 mm
- Finish
- Brushed
- Water inlet
- 1/2"
- Evacuation
- Ø 40 mm
- Fixing
- Wall mounted
- Dimensions
- W1200 x D330 x H566 mm
W1800 x D330 x H566 mm
W2300 x D330 x H566 mm - Waste connection
- 1 1/2"
- Outlet details
- 1 1/2" Ø 40 mm (trap included)
- Connection gender
- Male
- Water inlet details
- Vertical M1/2" threaded
