Automatic faucet wall-mounted EXTREME WS

zoom_in

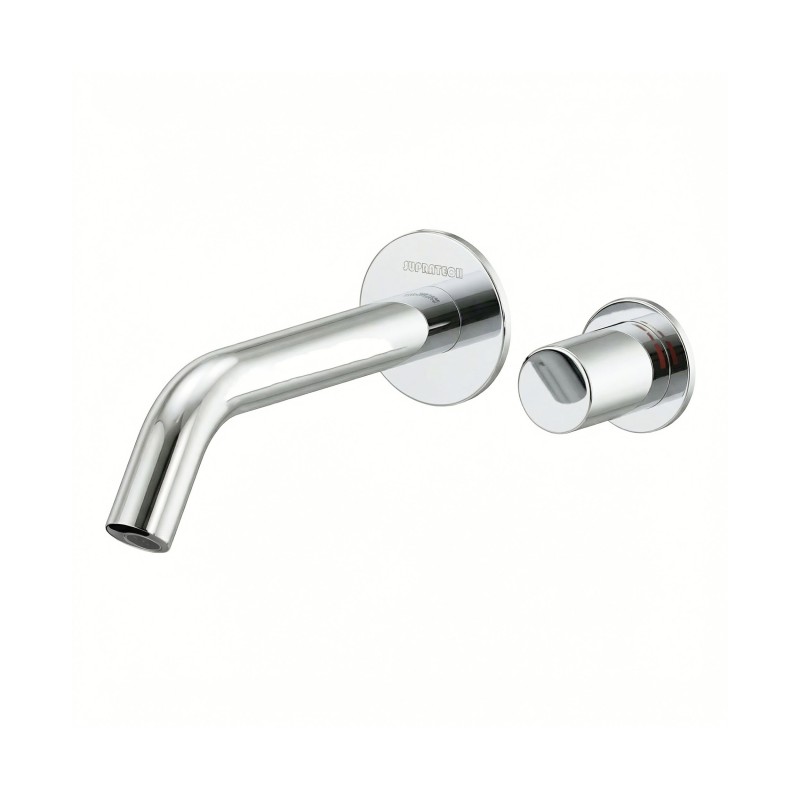

Electronic wall mounted faucet EXTREME WS

concealed sensor

Réf. : RES-904

€395.00 Tax Excl.

Power supply

Wall installation

Ask a question

Touch-free wall-mounted electronic faucet, for cold or premixed water.

Activated by a concealed sensor integrated into the spout, allowing a quicker response from a shorter range.
Easy installation. Helps wash rooms stay clean and saves on water.
Prevents cross contamination. Combined with EXTREME WS touch-free electronic soap dispenser, it creates a germ-free and automated environment.

EXTREME WS electronic faucet

Product properties:
- Self-adjusting sensor. Adjustable settings by remote control: sensor range, security time, delay in, delay out, on-off and reset to factory settings.
- Power supply 9V battery box or transformer 230/9V.
- By transformer, possible to use a backup battery for normal use in case of power cut.
- Low energy consumption, battery lasts about 3 years.
- Sensor includes a low battery indicator.

OPTIONS:

Remote control RES-31
Brushed, matt black, matt gold finish (minimum quantity).
Anti-legionella hygienic flush.
Limited flow rate 1,9 LPM.
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
Junction box 230/12V to supply up to 10 faucets (ref. RES-295)
Soap dispenser matching design
Integrated on wash basin support frame

Sensor: Spout tip with self-adjusting infrared sensor
Spout length: 195 mm
Power supply: 9V battery
230/9V transformer
Hygienic rinse anti-legionella: After 24 H of non-use
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: External M1/2'' with filter. Includes a space for a backup battery for mains operated, in the case of a power cut.
Material: Chrome-plated brass
Water supply: Single supply: cold water or pre-mixed water (mixed upstream)
Pressure: 0.3 - 8 bars
Max. eligible temperature: 70°C
Flow rate: 4 LPM (1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.

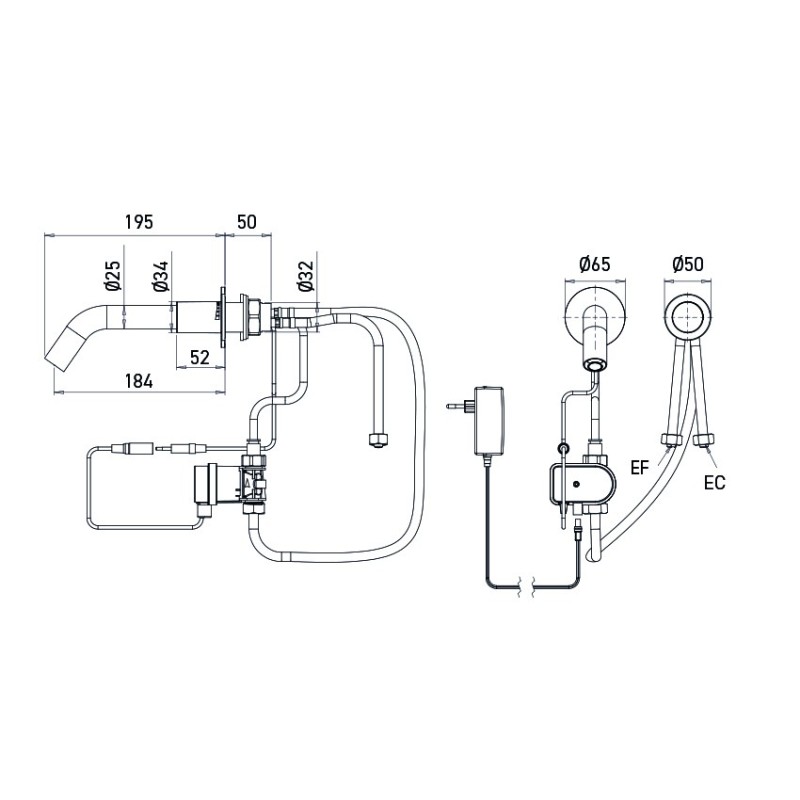

RES-904_Dimensions (pdf)

RES-914_Dimensions (pdf)

RES-904_914_Technical-sheet (pdf)
