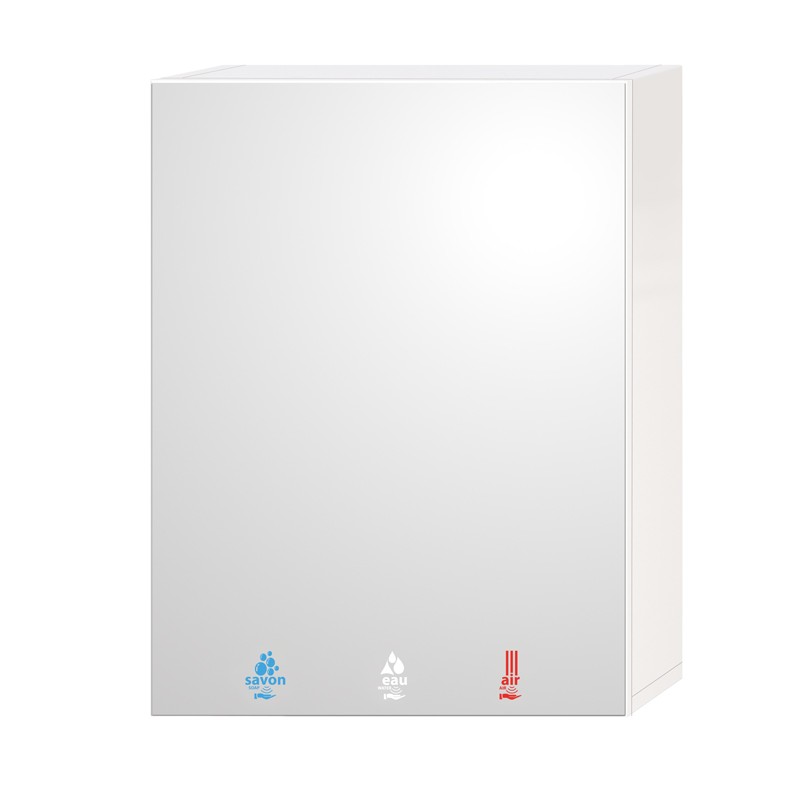

FLO 4in1 mirror cabinet - mirror, soap, water, air
Wall mounted 4-function mirror cabinet with integrated touch-free soap dispenser, automatic faucet and hand dryer
€1,595.00 Net Price
FLO handwashing mirror cabinet containing an automatic soap dispenser, an electronic water faucet, and a high-speed hand dryer.
The 4in1 FLO mirror seamlessly integrates mirror, water, soap, and air into a ready-to-install, well-designed, and fully functional ensemble.
Effortlessly mount the cabinet on stainless steel suspension rails, plug in only one electrical connection, connect water, and your setup is fully operational!

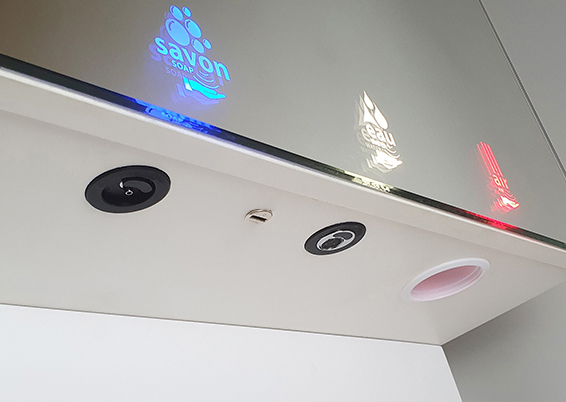

Thanks to the integration of all the functions, which are touch-free activated, it ensures perfect hand hygiene and contributes to the cleanliness of sanitary facilities: no visible faucets, users don't have to move around with wet hands and any water that drips during drying is collected directly above the sink... Integrated LED pictograms on the mirror inform and guide the user.
Cabinet 19mm white hydro melamine board with 1mm black PVC veneer edges.
The underside and door of the cabinet are made from 19 mm Komacel, a highly resistant coloured PVC material throughout.
It is both rot-proof (recommended for wet washbasin environments) and flame-retardant (fire-rated).
6 mm thick mirror with shatterproof film backing.
LED pictograms (colours of choice between blue, white, red or green).
Swinging door with adjustable invisible hinges.
Double hook lock with automatic locking system (no turning of the key)
1,5 mm stainless steel rails for robust mounting. Easy to level; facilitates cabinet mounting, width adjustment and securing through threaded inserts.
Self-adjusting infrared sensor faucet, 6 LPM flow rate (1.9 LPM option). Anti-legionella periodical rinsing.
Security stop after 90 seconds of uninterrupted use.
Water outlet 200 mm from the wall.
6L soap tank with large bottleneck.
Peristaltic pump, provides an exact dose of soap, no dripping.
Allows the use of liquid soap with a viscosity of up to 3800 cPs.
920W high-speed hand dryer (350W minimum setting).
Dries hands within 9 seconds (according to UL PCR hand dryer rules).
Air flow and sound volume adjustment (67,4 to 71,2 db at 1m away). Hot and ambiant air switch.
Low cabinet interior designed for easy cleaning, accessible surface and drain holes in the event of spillage during soap refill process.
Double backing cabinet (convenient during renovation to pass water and power lines behind the unit).
Quick and easy access, dismantling and reassembly of components for maintenance.
Suitable for PRM.
Dimensions W600 x D256 x H800. To be installed in a continuous row for communal sinks (binder screws and offset hinges available upon request).
CE. Made in France.
- Material
- 19mm white hydro melamine board with 1mm black PVC veneer edges
Underside and door in white 19 mm Komacel - Mirror
- 6 mm thick clear mirror with shatterproof film backing, polished edges
- Electrical supply
- 230 V 50/60Hz. 0.92 KW
- Electrical insulation
- Class I
- Water supply
- For cold or pre-mixed water
- Water inlet
- Threaded M1/2''
- Fixation
- Wall-mounted on stainless steel rails
- Dimensions
- W600 x H800 x D256 mm
- Warranty
- 3 years (soap dispenser 2 years)
